Fuel Pressure Regulator Control Inspection

View: System Relational Diagram:

SYSTEM OVERVIEW

SYSTEM INSPECTION
1. Start the engine and run it at idle.

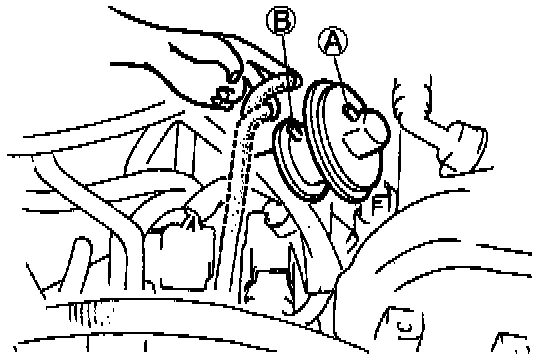

View: Checking For Vacuum:

2. Disconnect each vacuum hose from the pressure regulator. Verify that vacuum is felt.

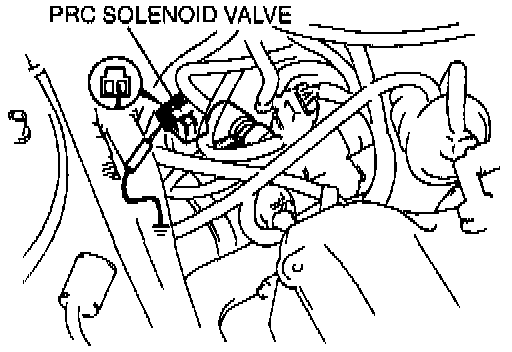

Use A Suitable Jumper Wire As Shown:

3. Ground the pressure regulator control (PRC) solenoid valve terminal wire by using a jumper wire. Verify that NO vacuum is felt to vacuum hose A and B.
4. If vacuum exists, check the PRC solenoid valve.
5. Connect the vacuum hose A and B.

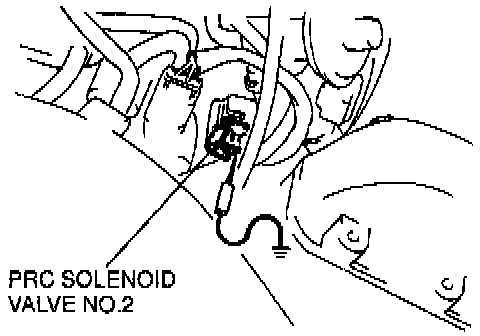

Use A Suitable Jumper Wire As Shown:

6. Ground the terminal wire for PRC solenoid valve No. 2 by using a jumper wire. Verify that vacuum is felt to vacuum hose B and NO vacuum is felt to vacuum hose A.
7. If vacuum exists, check the PRC solenoid valve No. 2.
8. Re-connect vacuum hoses A and B.
