Transaxle Range Switch (ATX)
REMOVAL1. Disconnect the negative battery cable.
2. Remove the resonance duct and the air cleaner housing assembly.
3. Disconnect the transaxle range switch connector.

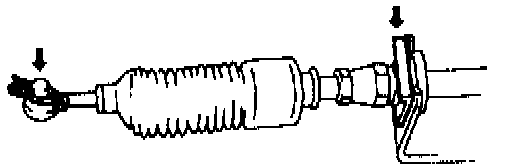

View: Selector Cable Spring Clip:
4. Remove the spring pin and clip and disconnect the selector cable.
5. Remove the manual shaft nut.
6. Remove the lock-washer and lever.
7. Remove the transaxle range switch.
INSTALLATION

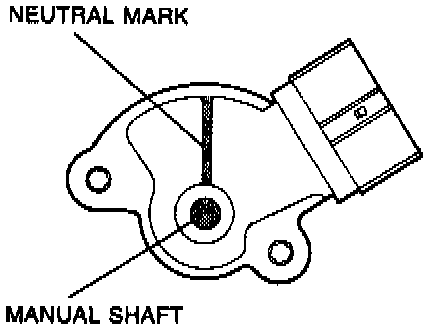

View: Transaxle Range Switch:
1. Rotate the manual shaft to the N position.
2. Turn the transaxle range switch so that the neutral mark is in line with the flat, straight surfaces on either side of the manual shaft.
3. Loosely tighten the transaxle range switch bolts.
View: Checking Continuity Between Terminals A & H:
4. Verify that there is continuity between terminals A and H of the transaxle range switch connector.
5. Tighten the transaxle range switch mounting bolts.
Tightening torque: 7.9 - 10.7 Nm (70 - 95 in.lb.)
6. Install the lever and spring washer.
7. Tighten the manual shaft nut by using a torque wrench.
Tightening torque: 32 - 46 Nm (24 - 33 ft.lb.)
8. Verify that the selector lever range position and transaxle range switch are aligned; then connect the selector cable and install a new spring pin and clip.
9. Check for continuity at the transaxle range switch.
10. Connect the transaxle range switch connector.
11. Install the air cleaner housing assembly and resonance duct.
12. Connect the negative battery cable.
13. Check operation of the transaxle range switch.
