Front

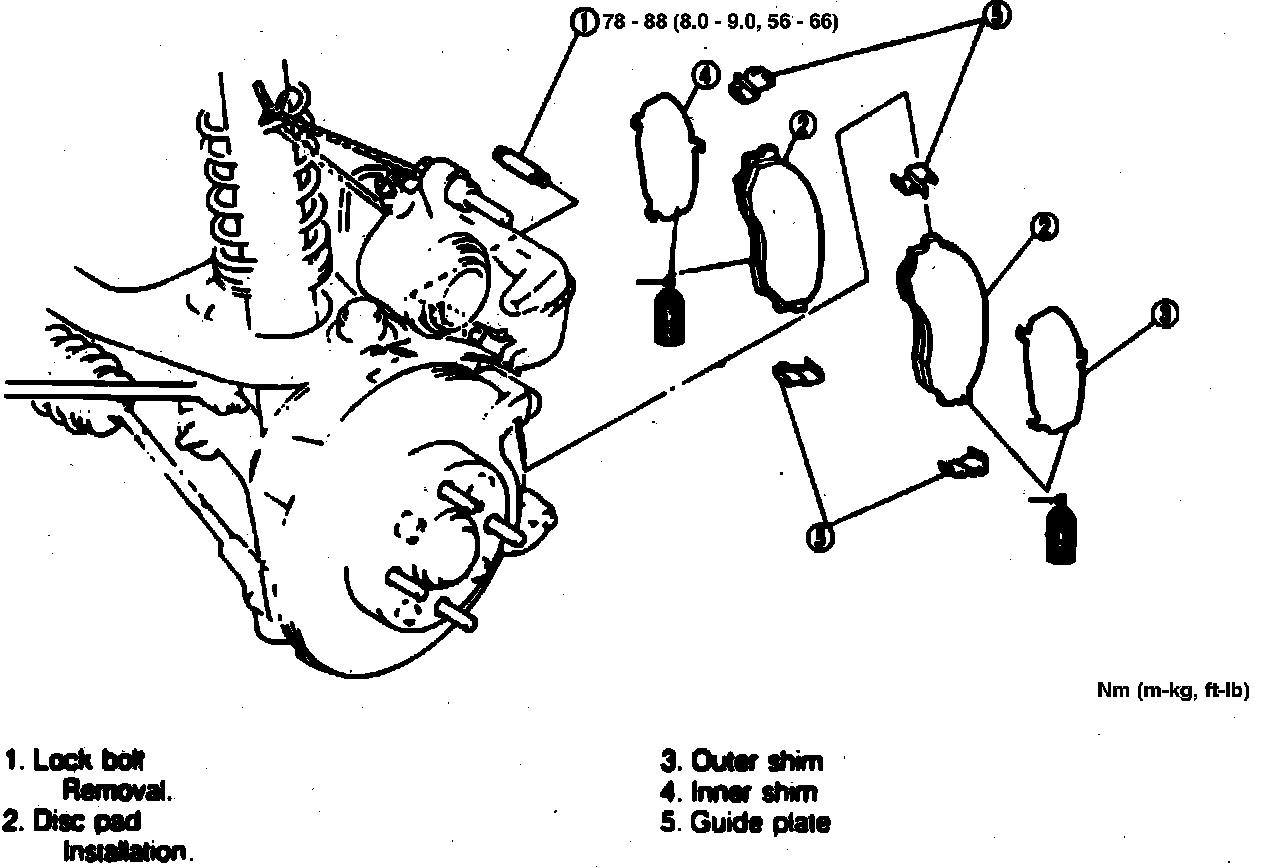

Fig. 1 Front Disc Brake Pad Replacement Procedure:
1.
Raise and support front of vehicle, then remove front wheels.
2.
Remove parts in order as shown in
Fig. 1, noting the following:
a.
After removing lower lock bolt, rotate caliper upward and support with rope.
3.
Reverse procedure to install, noting the following.
a.
Push the piston inward using piston pushing tool No. 490221600C or equivalent, then install new pads.
