Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection
INSPECTION 1.
Verify that the
ignition switch is OFF.
2.
Disconnect the mass air flow sensor connector.
3.

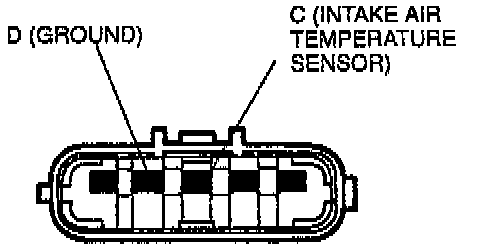

Measure resistance of the intake air temperature sensor as shown.
Specification: 2.21-2.69 at 20 °C ( 68 °F) 4.
If not as specified, replace the mass air flow sensor.
