Camshaft Position Sensor: Service and Repair

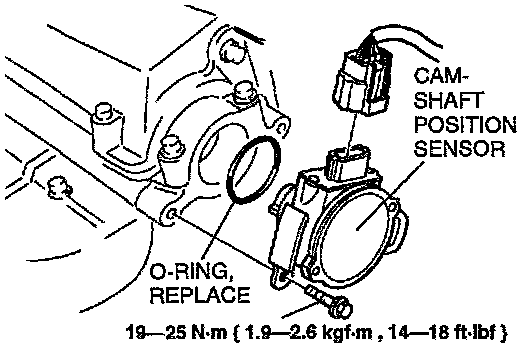

CAMSHAFT POSITION SENSOR REPLACEMENT -
Remove the ignition coil.
-
Remove
camshaft position sensor.
-
Install in reverse order.
-
Start the engine and adjust the ignition timing.
Timing:
10°±1° BTDC -
Tighten the
camshaft position sensor lock bolt to the specified torque.
Torque:
19 - 26 Nm (14 - 18 ft.lbs.).
