On-Vehicle Test
1.
Warm up the engine to normal operating temperature and run it at idle.
2.

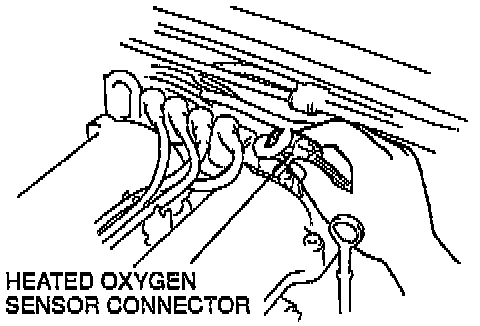

Disconnect the heated oxygen sensor connector.
3.

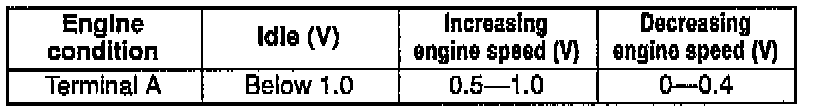

Measure the voltage at terminal A.
4.
If not as specified, check the intake air system, the fuel system and run the on-board diagnosis test.
5.
If these systems are OK, replace the heated oxygen sensor.
