Power Steering Pressure Switch: Testing and Inspection
INSPECTION 1.
Disconnect the
power steering pressure switch connector.
2.

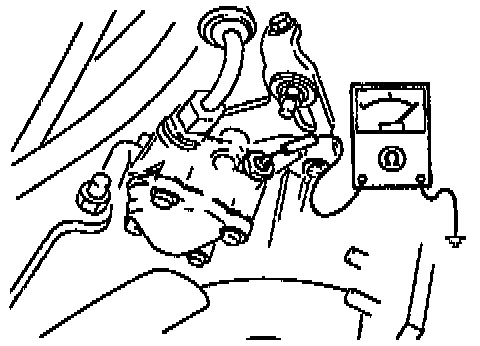

Connect an ohmmeter to the switch.
3.

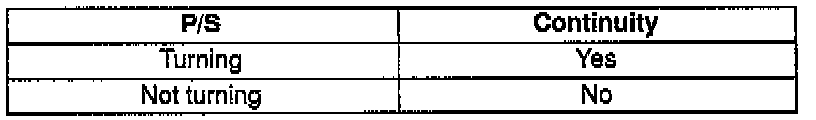

Start the engine and let it idle. Check continuity of the switch while turning the steering wheel.
4.
If not as specified, replace the
power steering pressure switch.
