Cooling Fan Control Inspection
1.

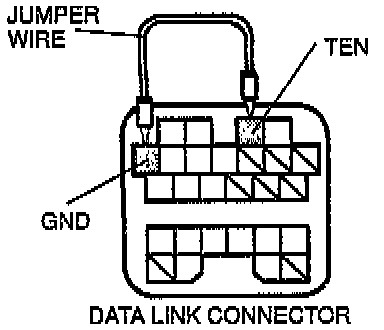

Connect a jumper wire between the terminals TEN and GND of the data link connector.
2.
Turn the
ignition switch to ON.
3.

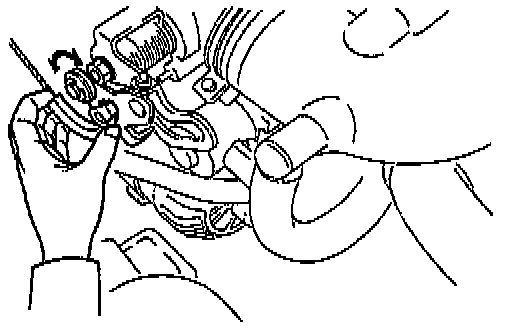

Rotate the throttle link by hand and verify that coolant fan and condenser fan operates.
4.
Disconnect the jumper wire.
5.
If not specified, inspect as following.
-
ECM terminal 1 N voltage
-
ECM terminal 2H voltage
-
Coolant fan relay
-
Condenser fan relay
