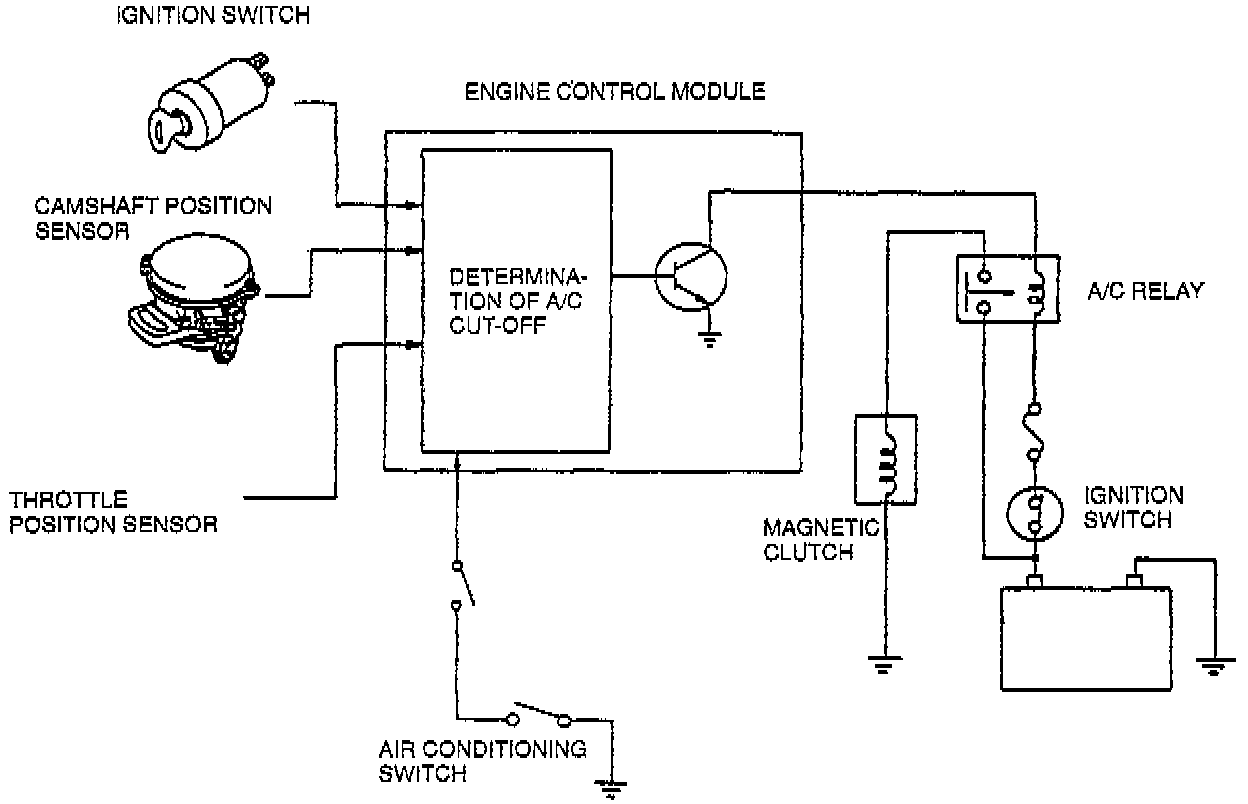

A/C Cut-Off Control System
An A/C cut-off system is used to improve idle smoothness after just starting the engine and to improve acceleration performance.
After engine has been started The A/C is cut off for 2 sec. just after the engine is started.
Acceleration The A/C is cut off upon wide open throttle acceleration for approx. 5 sec.
