Fuel System
This system supplies the necessary fuel for combustion at a constant pressure to the fuel injectors. Fuel is metered and injected into the intake manifold according to the injection control signals from the engine control module. The system consists of the fuel tank, fuel pump, fuel filters, fuel distributor, pressure regulator, fuel injectors, and fuel pump relay.

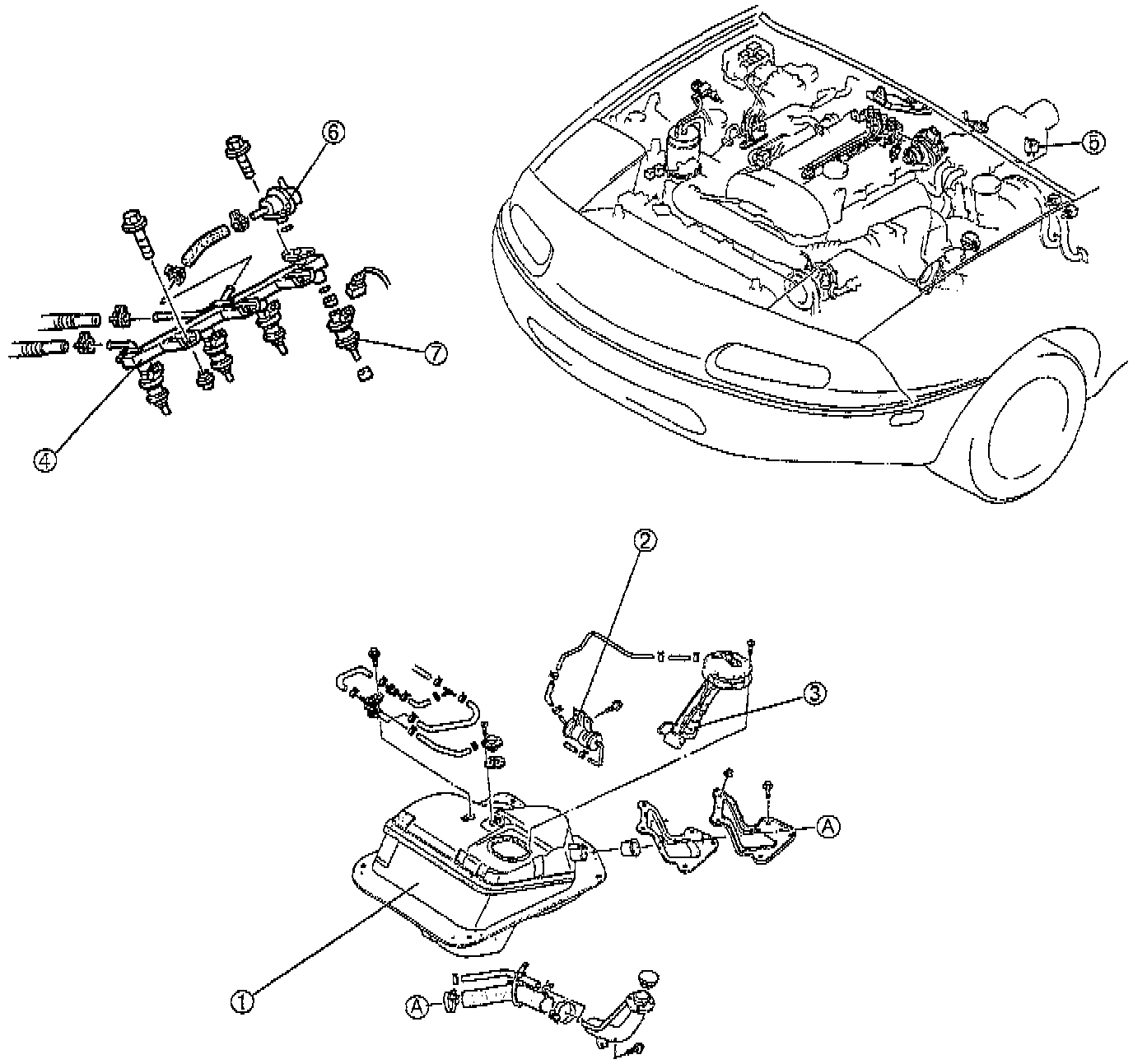

1. Fuel tank
2. Fuel filter
3. Fuel pump
4. Fuel distributor
5. Fuel pump relay
6. Pressure regulator
7. Fuel injector
