Ignition Cable: Service and Repair

INSPECTION

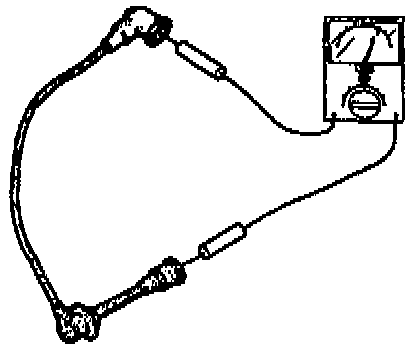

1. Use an ohmmeter to measure the resistance of each lead.

Resistance: 16 k Ohms per 1.00 m ( 3.28 ft)

2. If not as specified, replace the high-tension lead.
