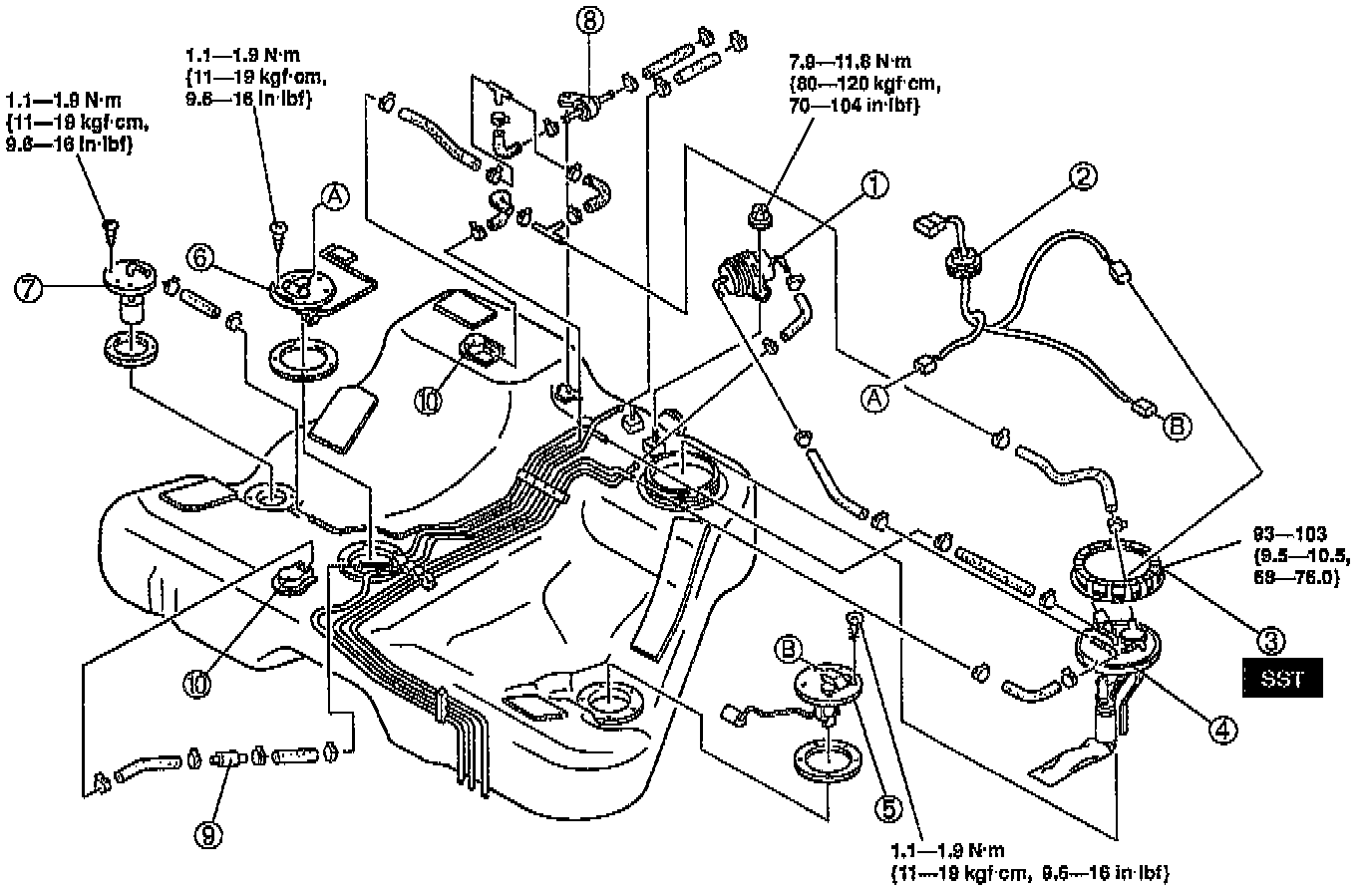

Fuel Tank

1. Fuel filter (high-pressure side)
2. Harness
3. Union nut
4. Fuel pump assembly
5. Fuel gauge sender unit No.1
6. Fuel gauge sender unit No.2
7. Fuel filter (transfer)
8. Check valve (two-way)
9. Check valve (one-way)
10. Fuel vapor valve
