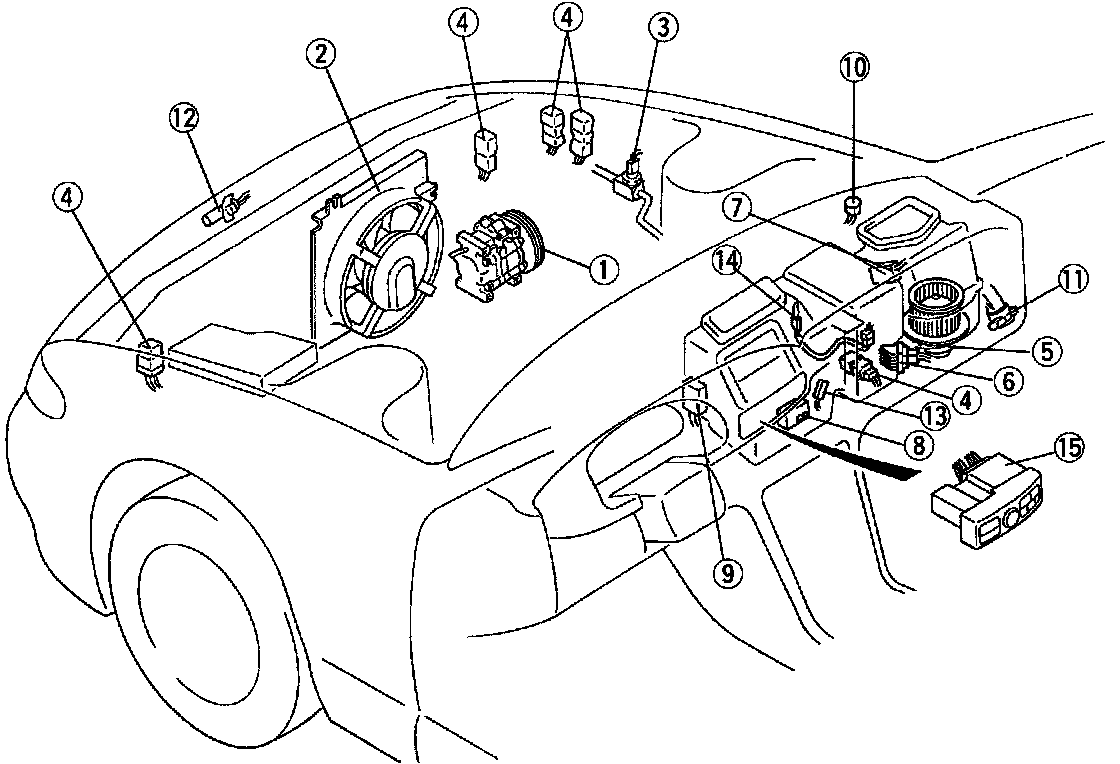

Control System Components
1.
Magnetic clutch
9.
Airflow mode actuator
2.
Condenser fan
10.
Solar radiation sensor
3.
Refrigerant pressure switch
11.
Passenger compartment temp. sensor
4.
Relay
12.
Ambient temperature sensor
5.
Blower motor
13.
Water temperature sensor
6.
Power transistor
14.
Evaporator temperature sensor
7.
Air intake actuator
15.
Heater control assembly
8.
Air mix actuator
