Camber
1.
Loosen cam nut on upper lateral link.
2.
Turn adjusting cam bolt,
Fig. 1, to provide camber angle,
Fig. 2. Turning adjusting cam bolt one graduation changes camber about 8/30°.
3.
Torque cam nut to 58 - 86 ft.lb., then adjust toe-in as described under
Toe-In.

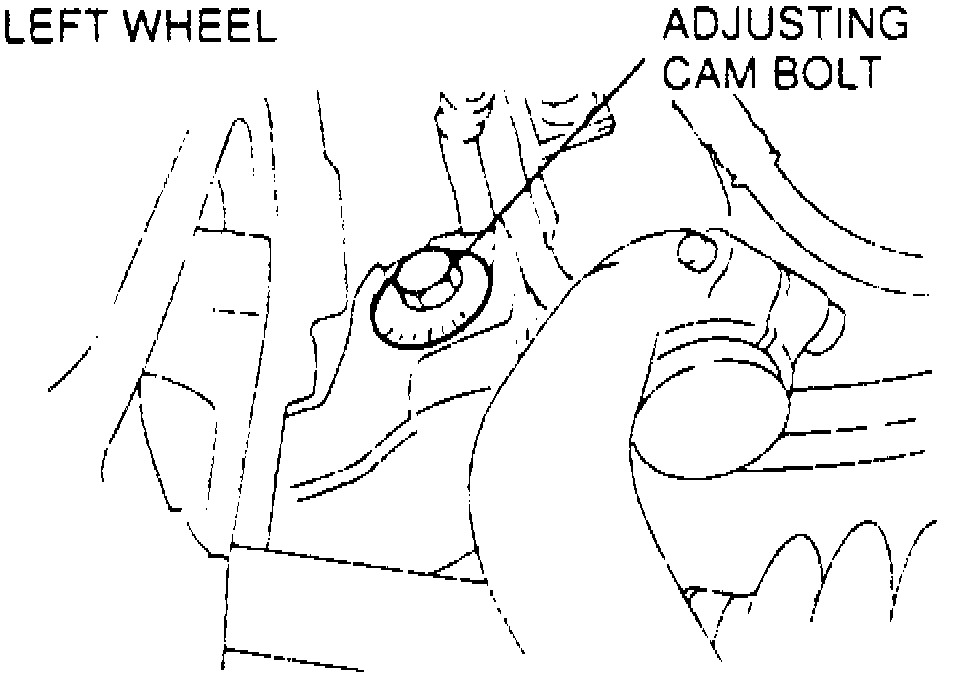

Fig. 1 Front Adjusting Cam Bolt Location:

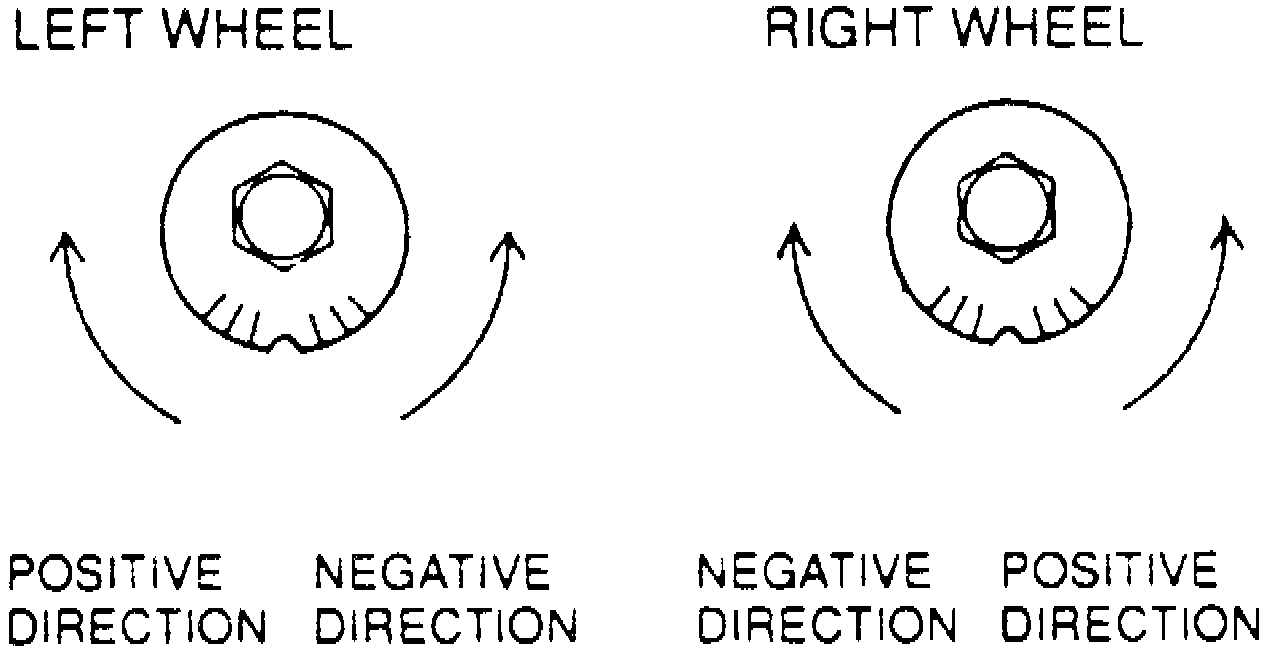

Fig. 2 Front Camber Adjustment:
