Component Locations

Fig. 1 Fuse & Relay Panel Locations:

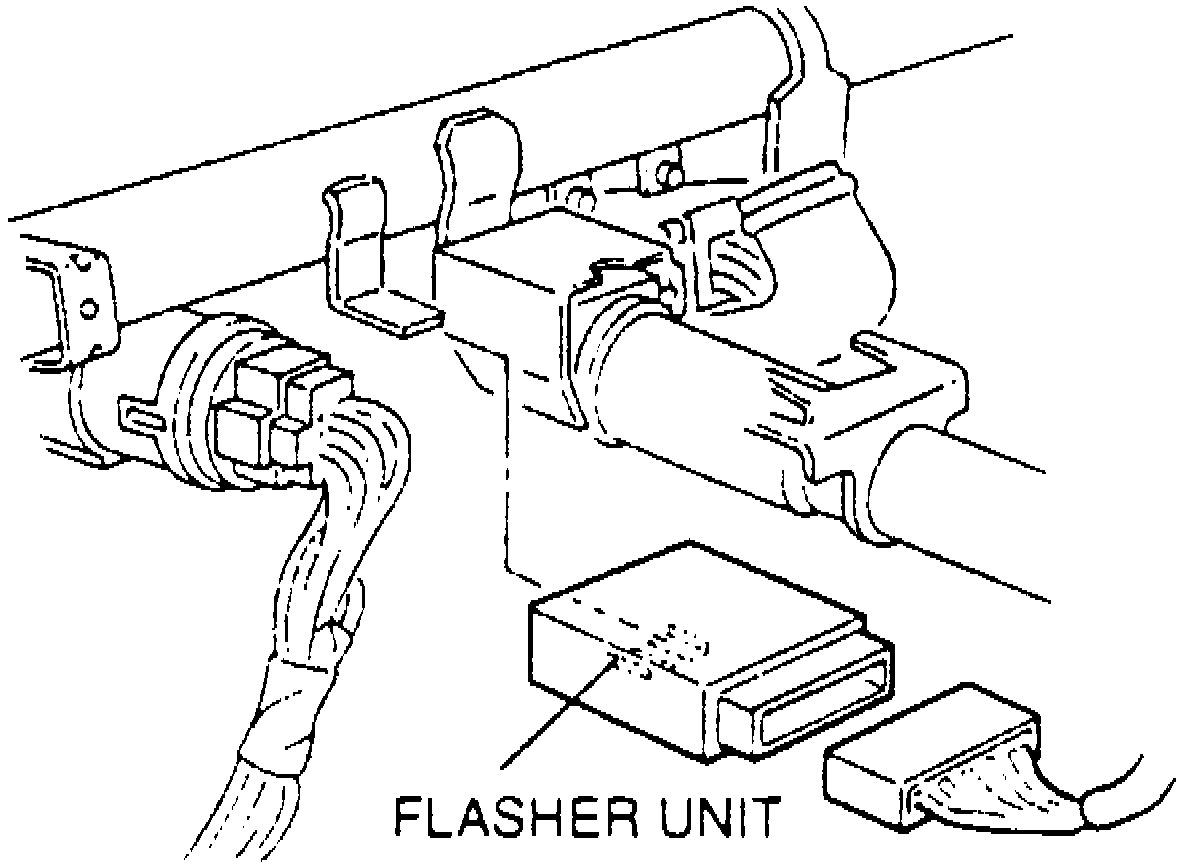

Fig. 2 Flasher Unit Location:

The main fuse panel is located in the lefthand side of the engine compartment and the fuse block is located behind the lefthand kick panel, Fig. 1. The flasher unit is located behind the lefthand side of the instrument panel, on the righthand side of the steering wheel, Fig. 2.
