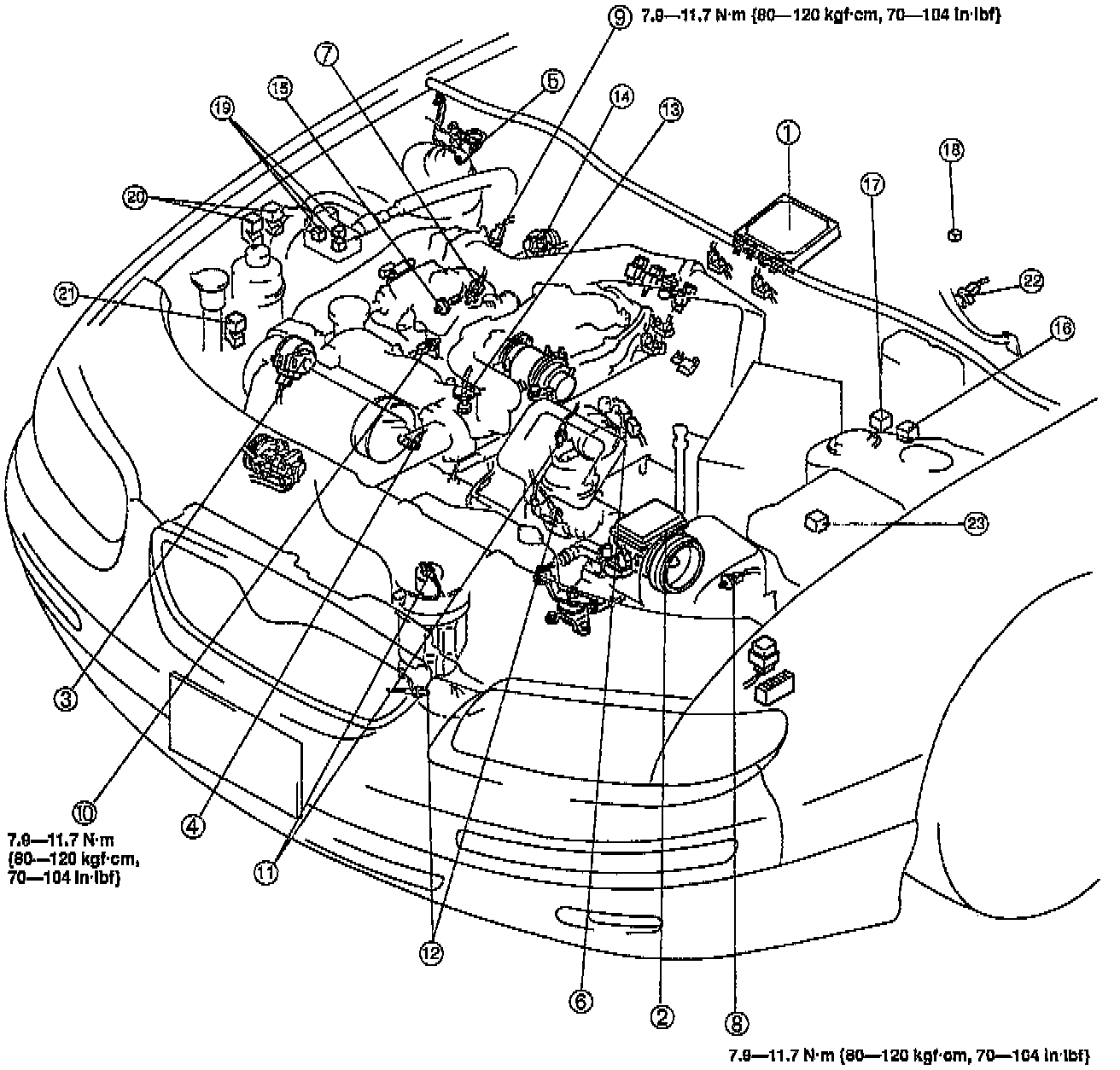

Component Locations

1. Engine control module (ECM)
2. Mass air flow sensor
3. Camshaft position sensor
4. Crankshaft position sensor
5. Manifold absolute pressure sensor
6. Throttle position sensor
7. Engine coolant temperature sensor
8. Intake air temperature sensor (Air Cleaner)
9. Intake air temperature sensor (Dynamic Chamber)
10. Intake air temperature sensor (Lysholm Compressor)
11. Heated oxygen sensor (front)
12. Heated oxygen sensor (rear)
13. Knock sensor
14. EGR valve position sensor
15. P/S pressure switch
16. Main relay
17. Fuel pump relay
18. Vehicle speed sensor
19. Coolant fan relay
20. Condenser fan relay
21. A/C relay
22. Brake switch
23. Heated oxygen sensor heater relay
