Manifold Pressure/Vacuum Sensor: Locations

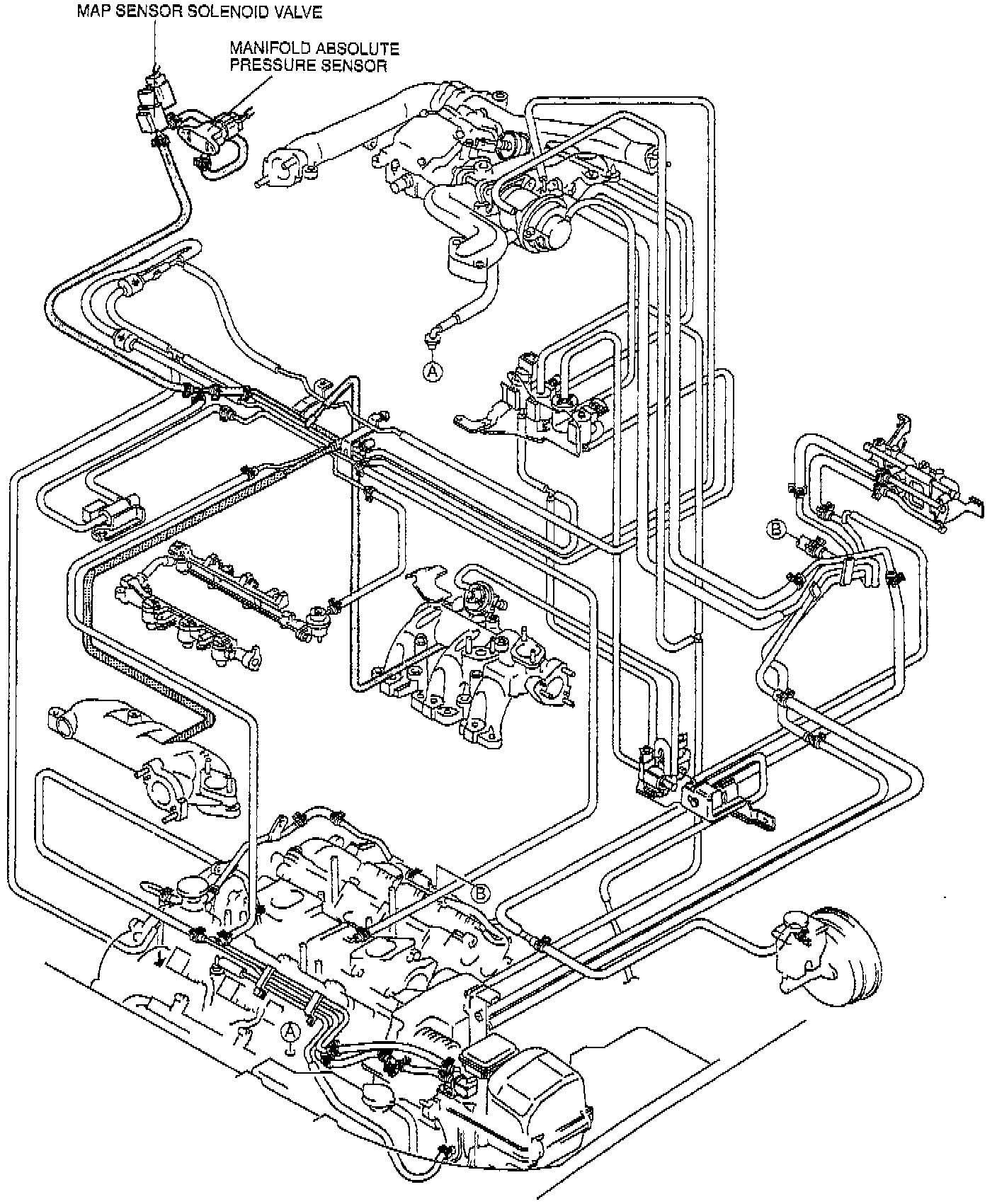

Manifold Absolute Pressure Sensor Located near the firewall on the right side of the engine compartment.
Refer to item
No.5 in the figure.
Manifold Absolute Pressure Sensor Solenoid Valve Located on the right side of the engine compartment, near the Manifold Absolute Pressure Sensor.
