Power Steering Pressure Switch: Testing and Inspection
Inspection 1.
Disconnect the P/S pressure switch connector.
2.
Start the engine.
3.

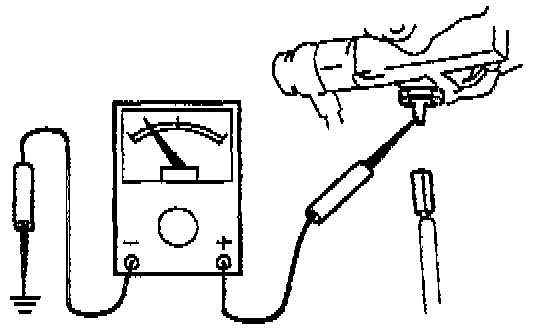

Check continuity of the switch by using an ohmmeter.
Specification:
4.
If not as specified, replace the P/S pressure switch.
