Output Devices

[Output Device]

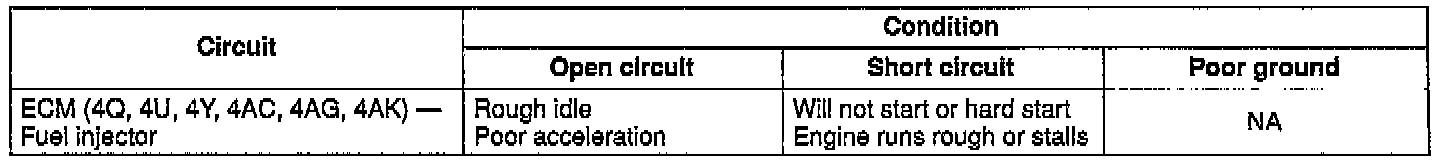

Fuel Injector

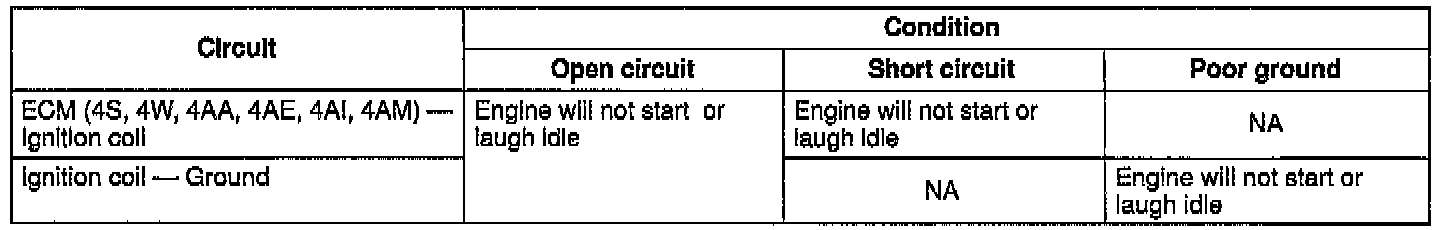

IGT Signal (Ignition coil)

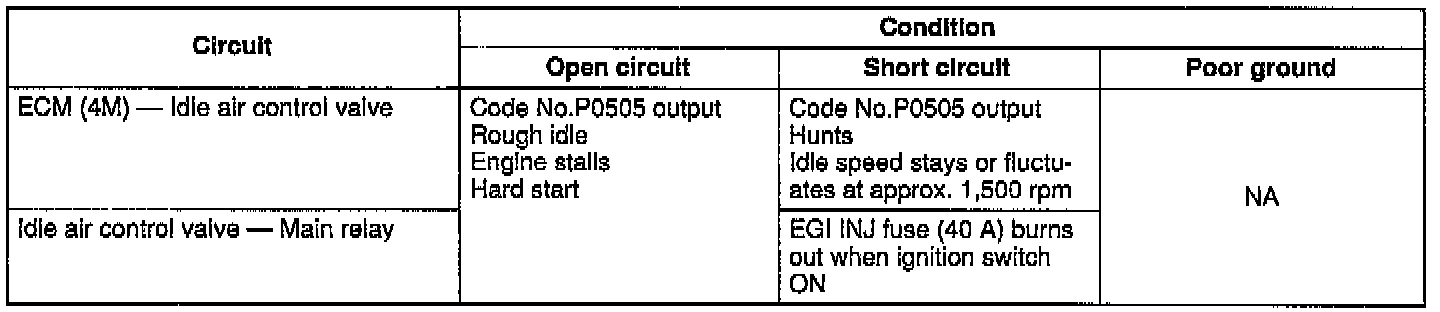

Idle Air Control Valve [IN BAC Valve]

Fuel Pump Relay

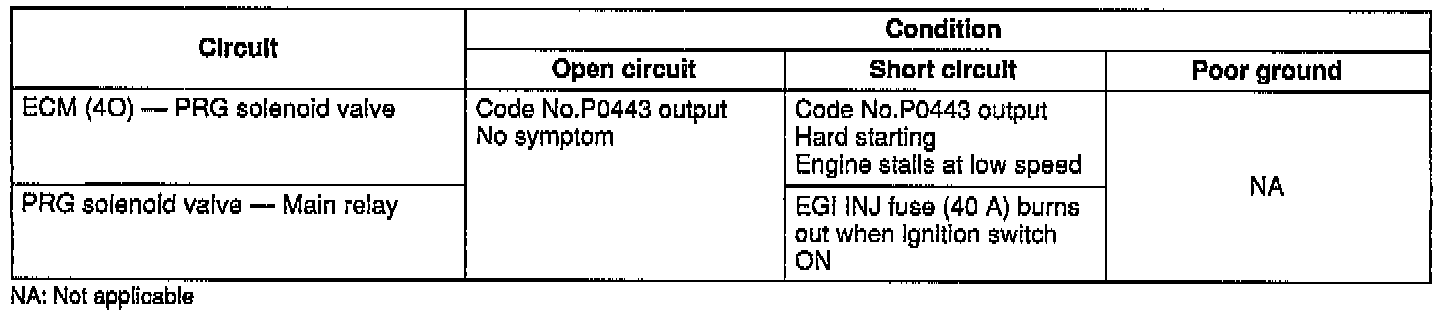

PRG Solenoid Valve

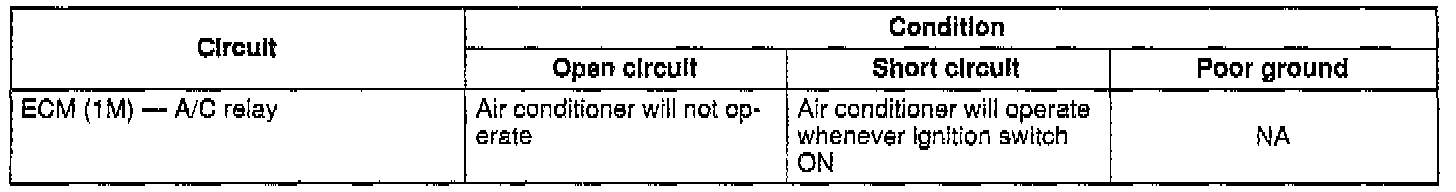

A/C Signal (A/C Relay)

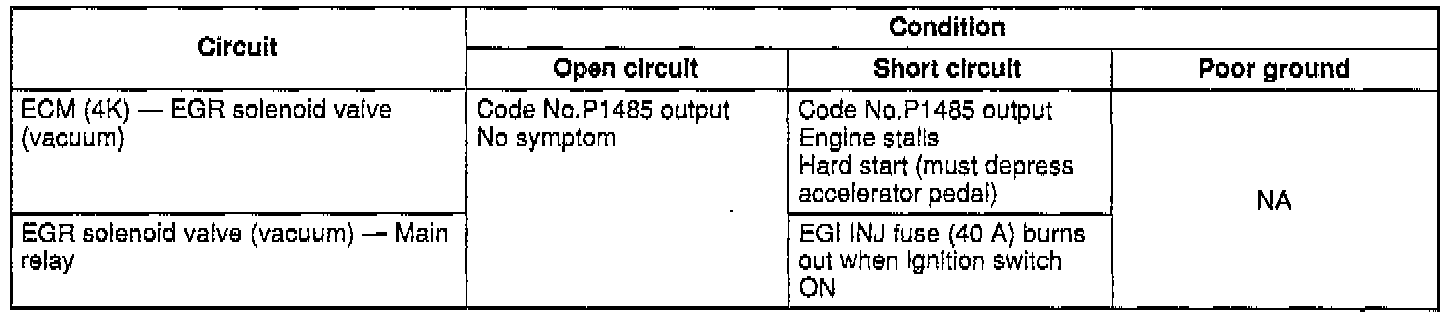

EGR Solenoid Valve (Vacuum)

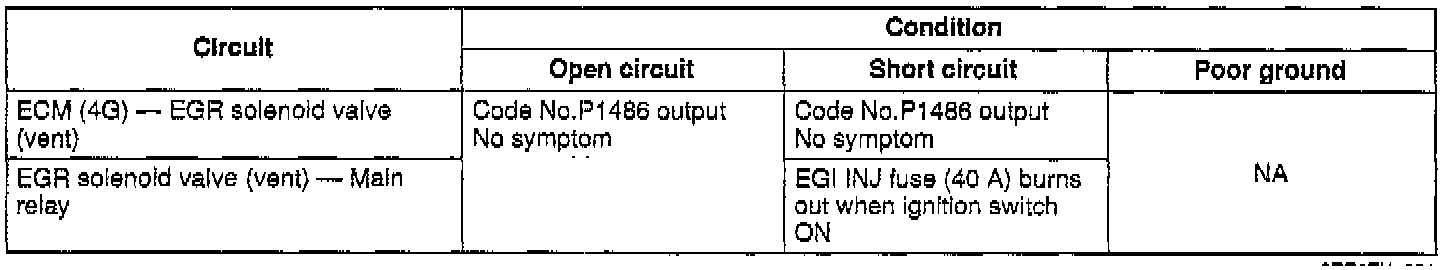

EGR Solenoid Valve (Vent)

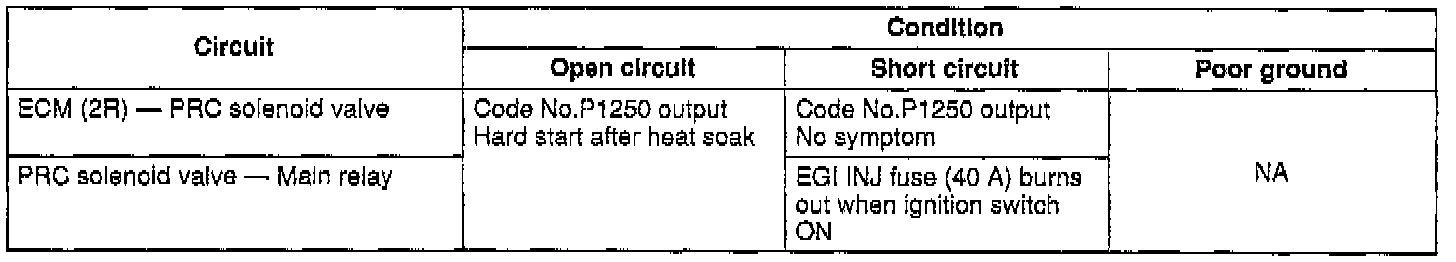

PRC Solenoid Valve

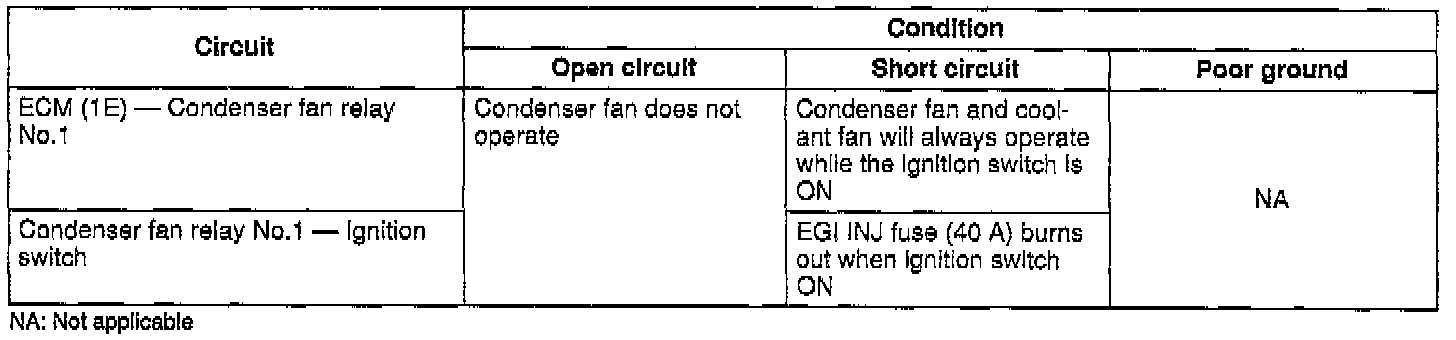

Condenser Fan Relay No.1

Coolant Fan Relay No.1 and Condenser Fan Relay No.2

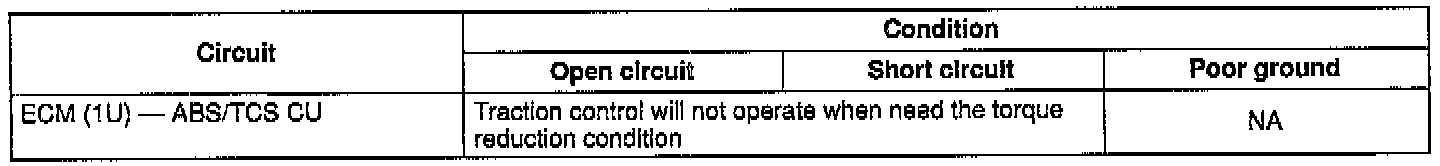

Torque Reduction Inhibit Signal (ABS/TCS Control Unit):

Torque Reduction inhibit Signal (ABS/TCS Control Unit)

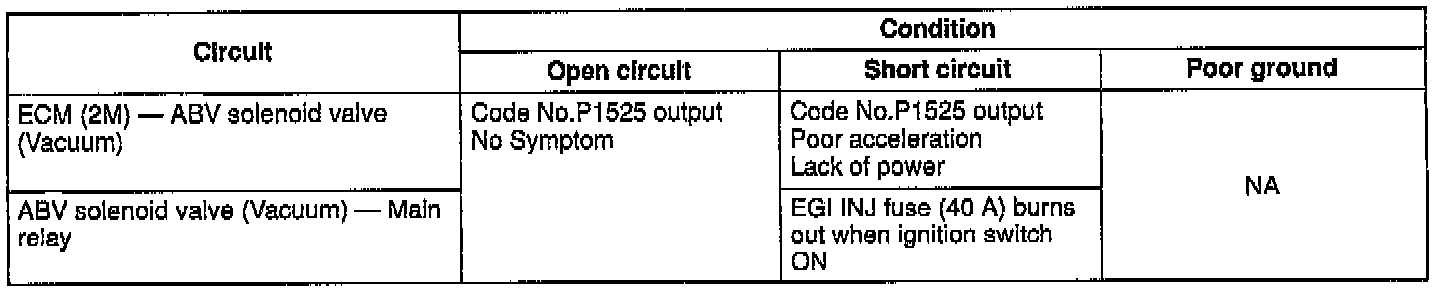

ABV Solenoid Valve (Vacuum)

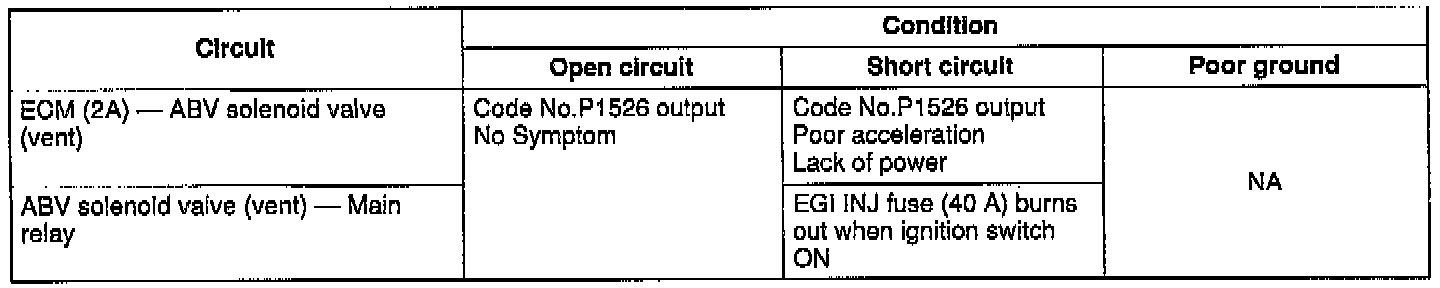

ABV Solenoid Valve (Vent)

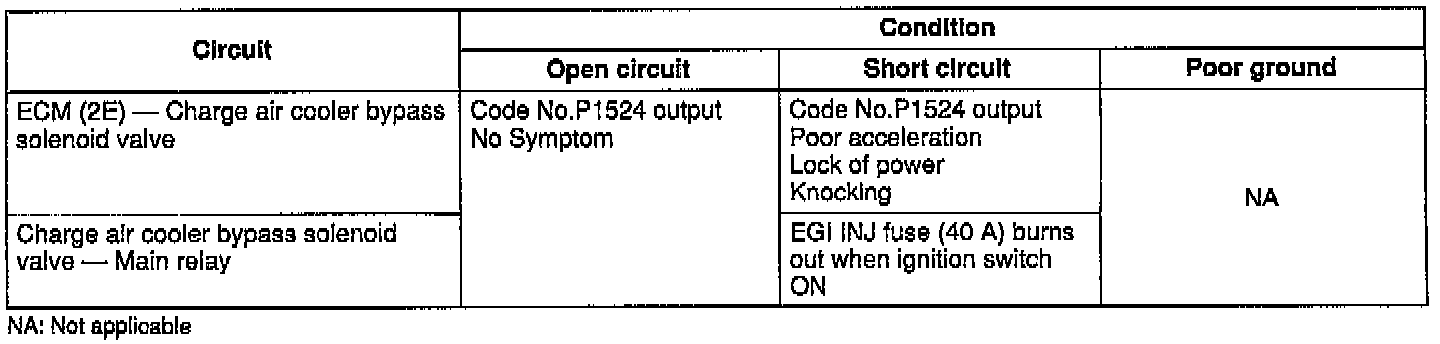

Charge Air Cooler Bypass Solenoid Valve

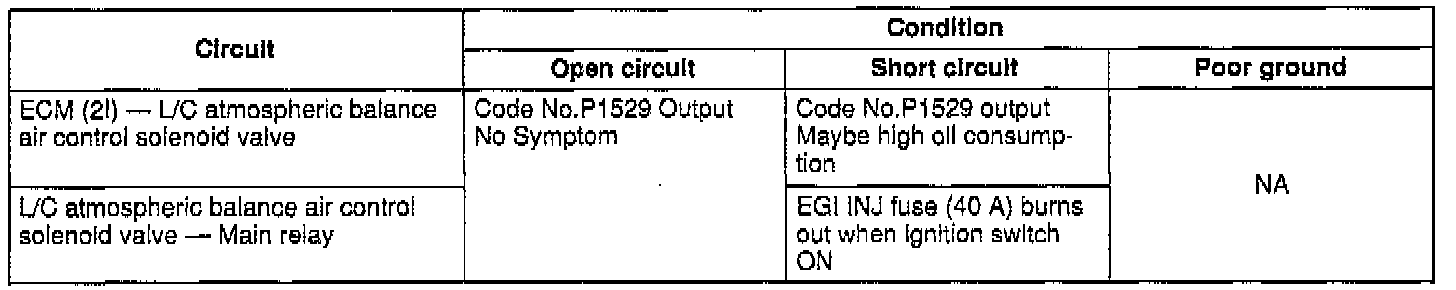

L/C Atmospheric Balance Air Control Solenoid Valve

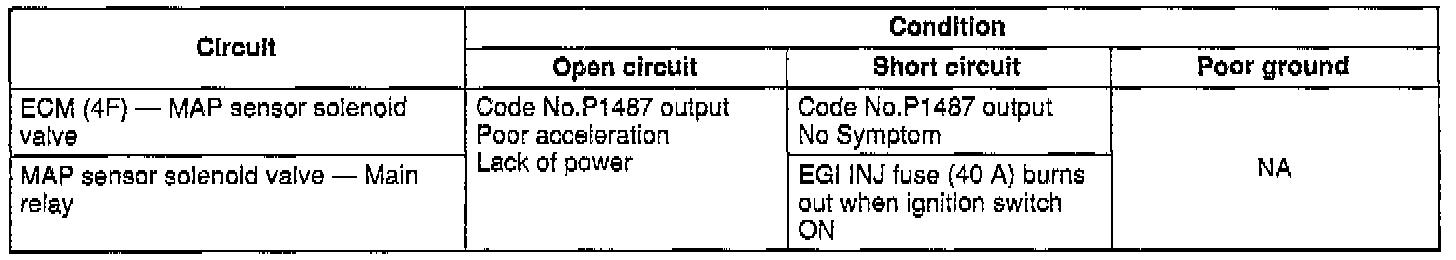

MAP Sensor Solenoid Valve

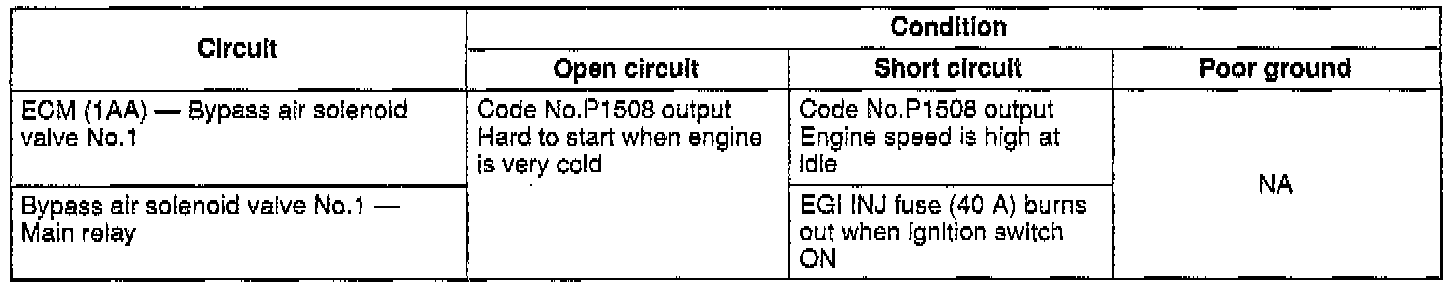

Bypass Air Solenoid Valve No.1

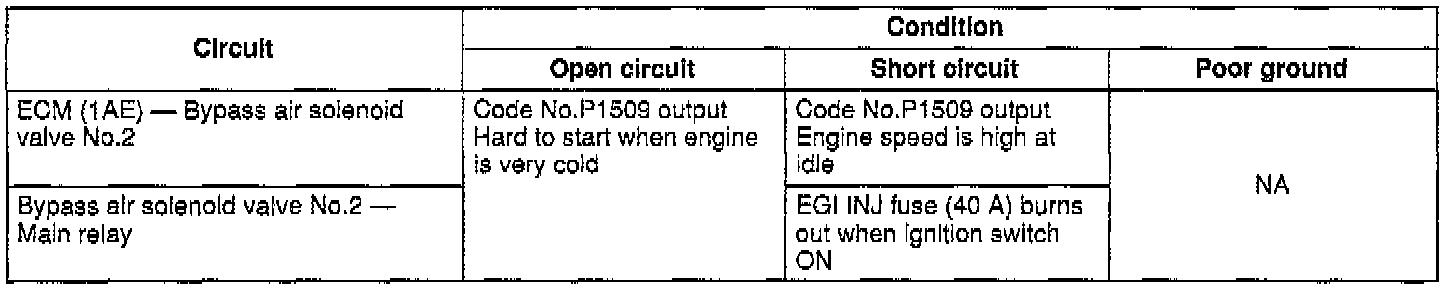

Bypass Air Solenoid Valve No.2

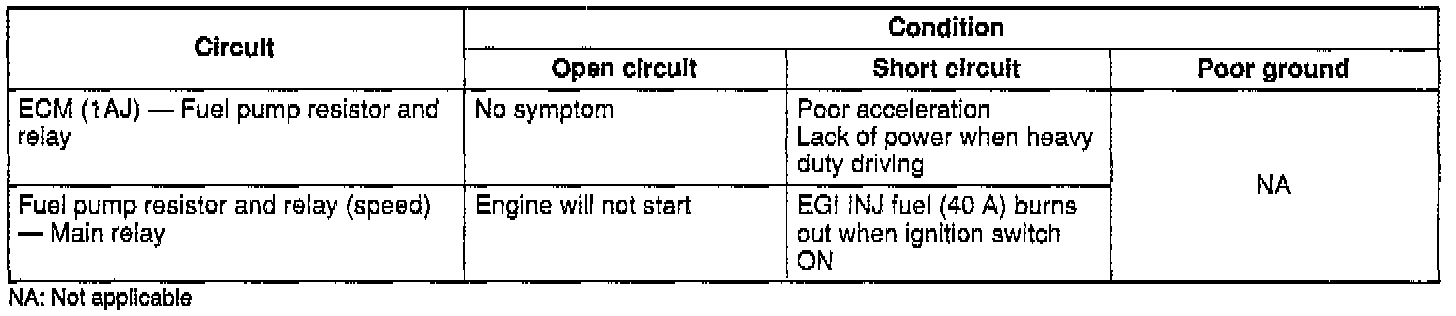

Fuel Pump Resistor and Relay (Speed)

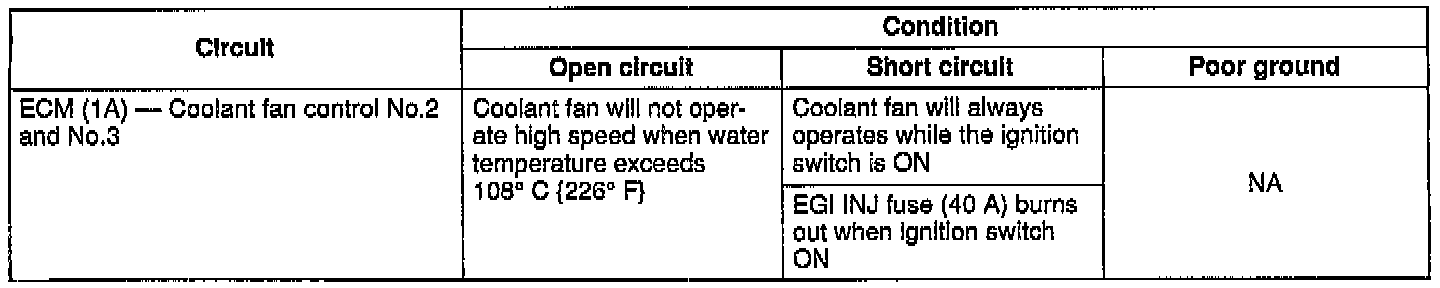

Coolant Fan Relay No.2 and No.3

High Air Charging Pressure Zone Signal
