System Specifications

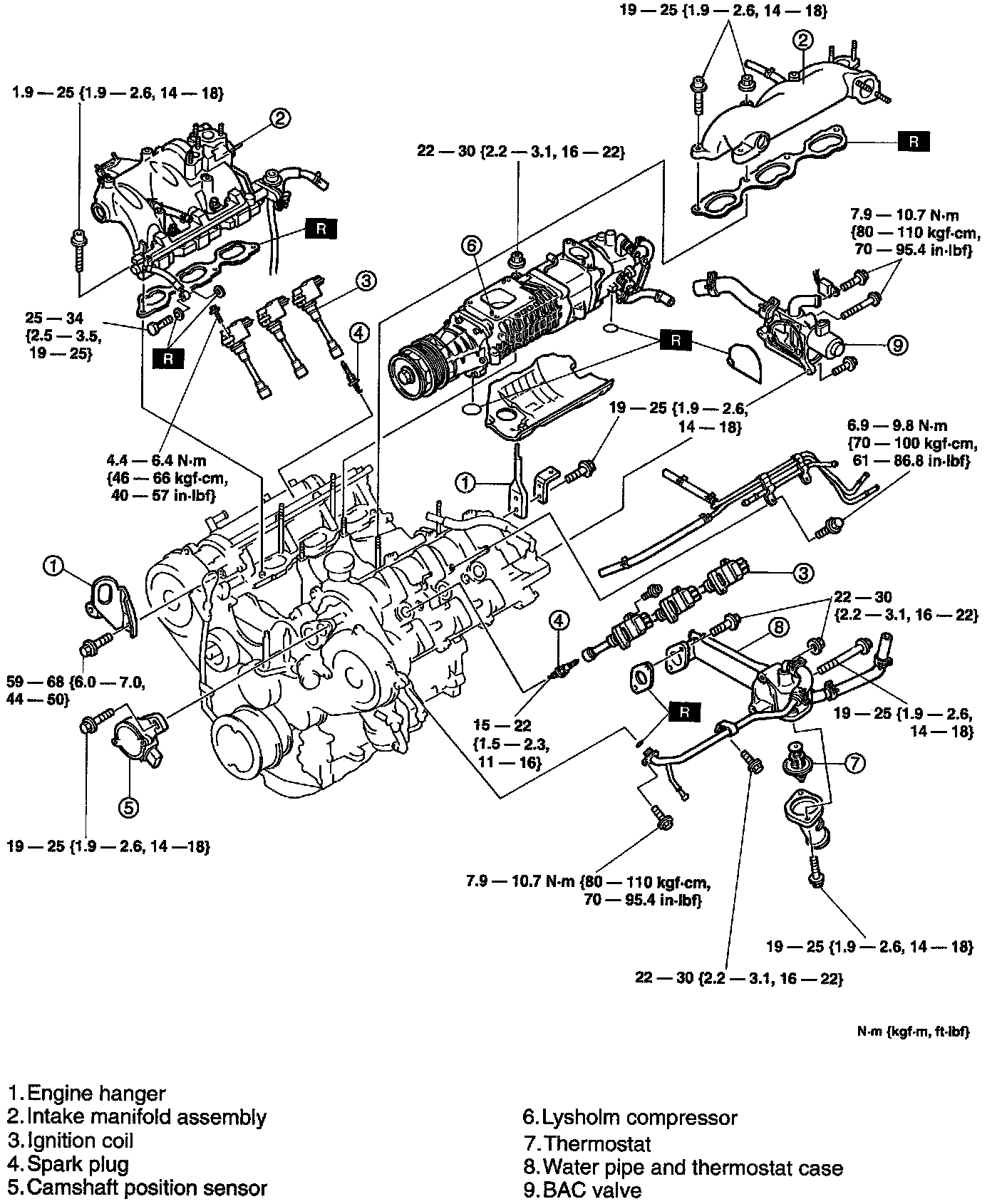

Intake:
Intake:
Upper Engine:

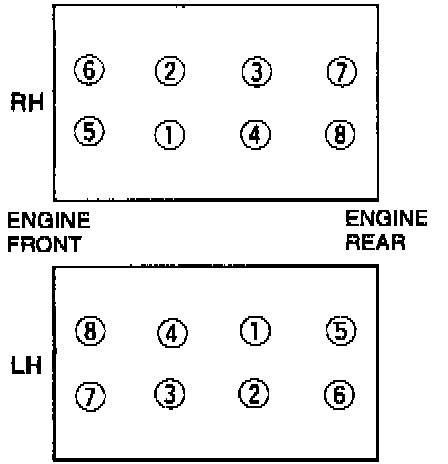

Head Torque Sequence:
Tighten the bolts in two or three steps in the order shown.
Tightening torque:
23.1-25.9 N.m (17.0-19.1 ft-lb)
Put a paint mark on each bolt head.
Using the marks as a reference, tighten the bolts by turning each 85°-95° in the sequence shown.
Further tighten each bolt by turning another 85°-95°.
Timing Components:

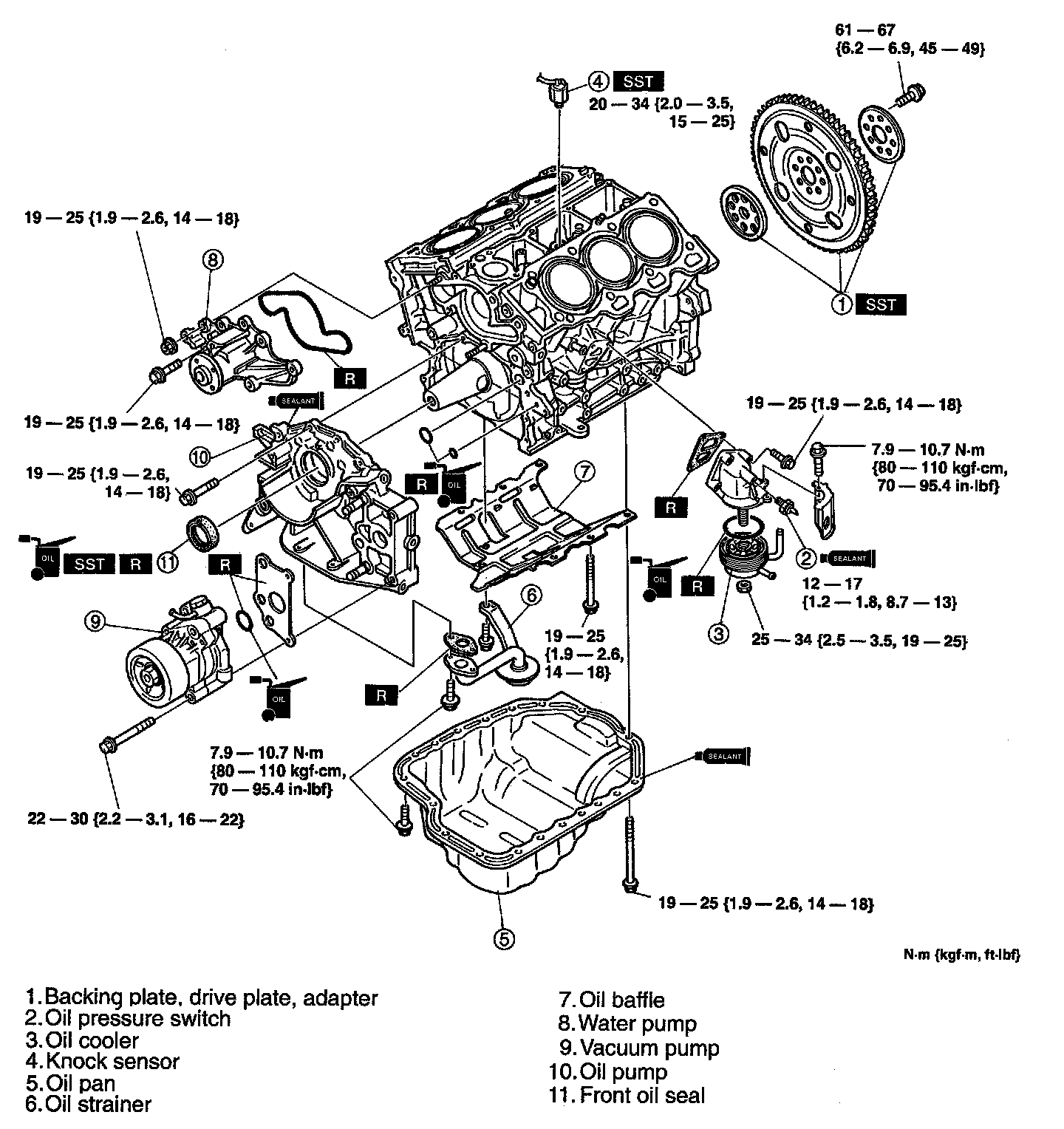

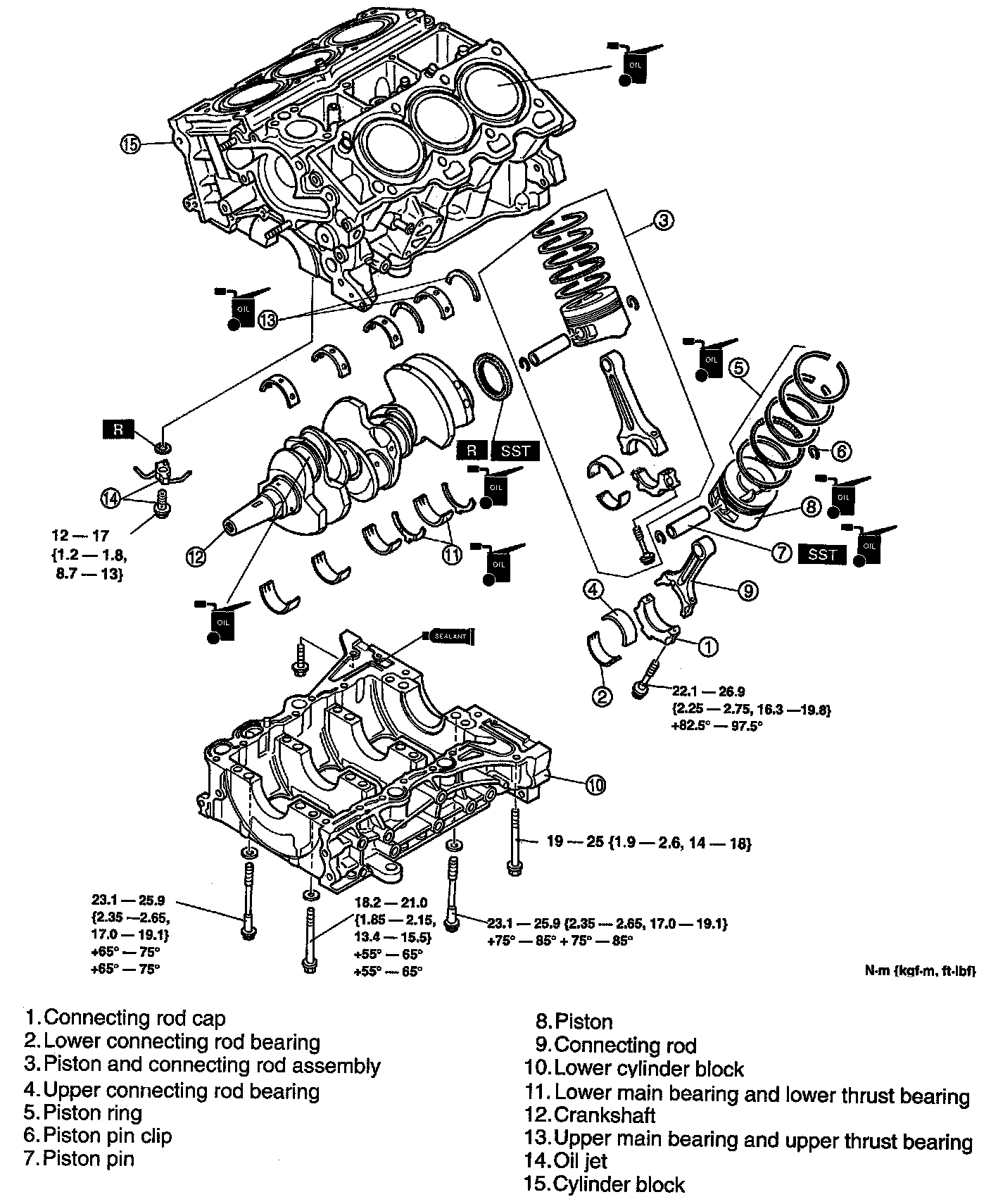

Lower Engine:
Lower Cylinder Block Bolts:

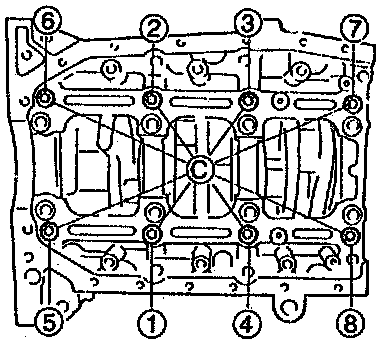

Lower Cylinder Block Torque Sequence:
Torque Sequence:
Lower Cylinder Block Torque Sequence:
