System Inspection
1.
Turn the
ignition switch to START and check for
fuel pump relay operating sound.
2.

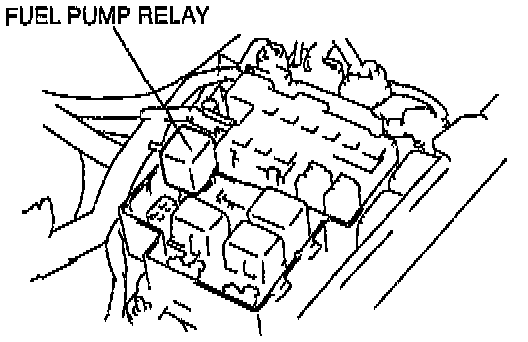

If not sound was heard, check the
fuel pump relay.
3.
If the
fuel pump relay is normal, check voltage at following terminals.
-
ECM terminal 1C (
Ignition switch START signal)
-
ECM terminal 1U (
Fuel pump relay)
