Computer Power and Ground Circuits

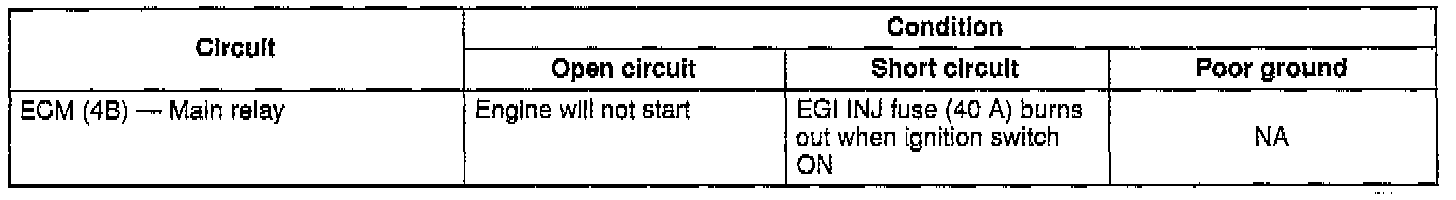

Main Relay (Battery Power)

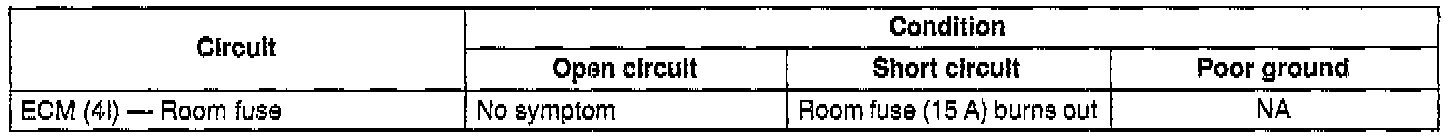

Room Fuse (Memory Power)

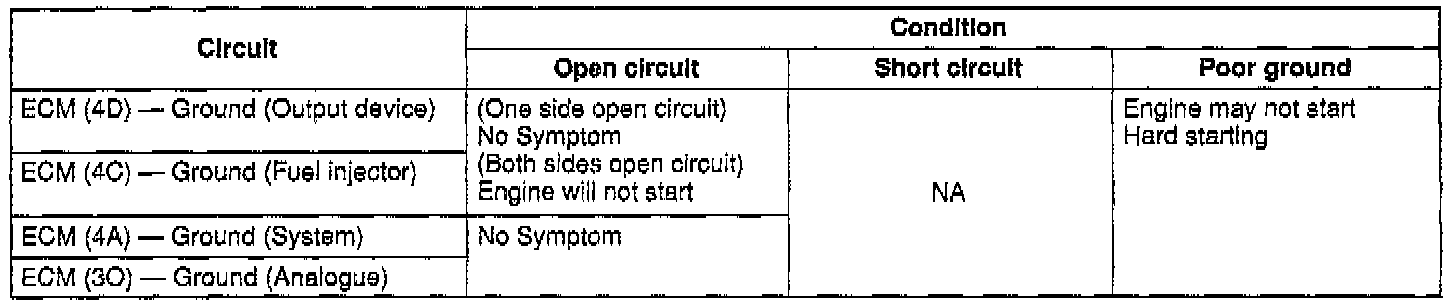

Ground (Output Device, Injector, System, Analogue)

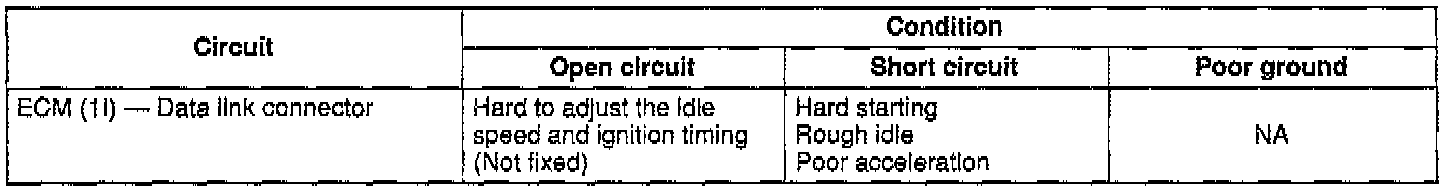

Data Link Connector (Terminal TEN)

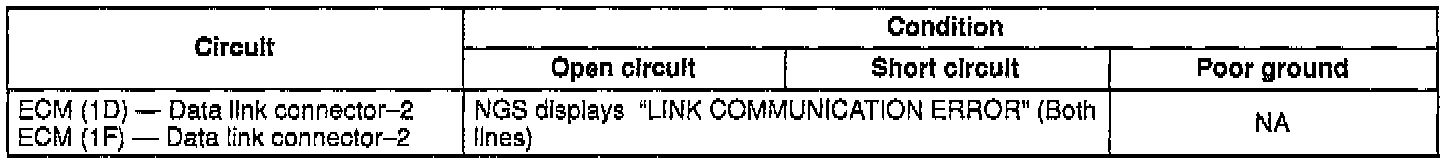

Data Link Connector-2 (Terminal BUS+, BUS-)
