Component Tests and General Diagnostics
Inspection of voltage 1.

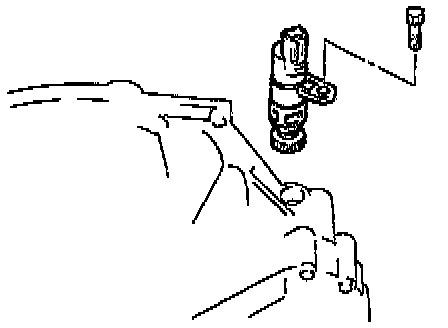

Remove the
speedometer sensor 2.

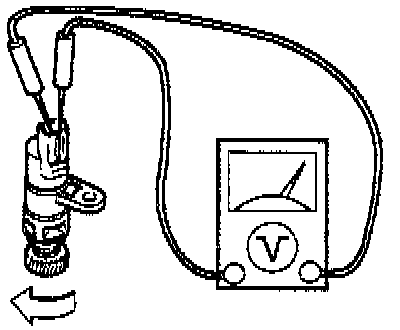

Measure voltage between terminals of the
speedometer sensor while rotating the driven gear.
3.
Install the
speedometer sensor.
Inspection of wave form 1.
Connect the oscilloscope to the transmission control module at terminal 1P.
2.
Inspect the wave form as shown in the figure.
