Front
Removal / InstallationDisc Pad Installation Note 1.

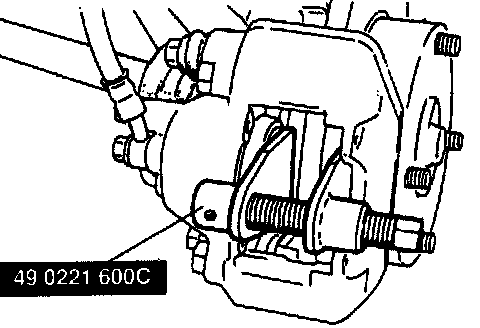

Push the piston fully inward by using the SST.
2.
Install the disc pad.
After installation, depress the pedal a few times. Then rotate the wheel by hand, and verify that the brakes do not drag.
