Airflow Mode Wire Adjustment
Airflow Mode Wire Adjustment 1.
Set the MODE lever at DEFROSTER.
2.
Connect the airflow mode wire to the airflow mode main link.
3.

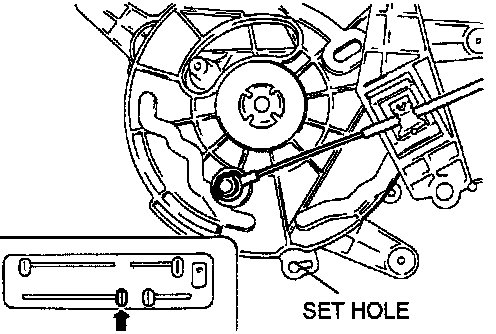

Set the airflow mode main link to DEFROSTER and insert a screwdriver into the set hole.
Clamp the airflow mode wire.
4.
Verify that the MODE lever moves in its full stroke.
