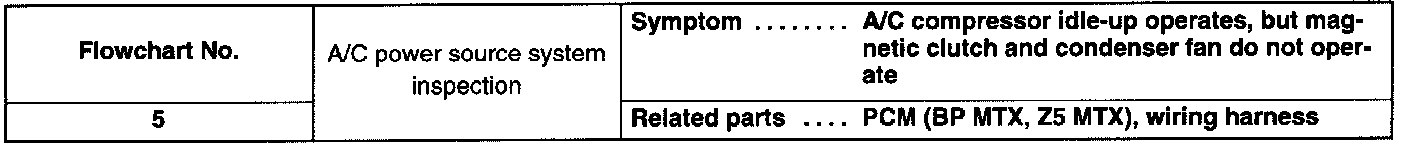

Flowchart No.5: A/C Power Source System Inspection
Remedy
(BP MTX, Z5 MTX) Check the following parts. Repair or replace any abnormal parts. If the parts are normal, check the PCM,
1.
Wiring harness [Fuse -
A/C relay: TURN 10A - A]
2.
Wiring harness [
A/C relay - PCM: B - 1G]
(BP ATX, Z5 ATX) Repair the wiring harness [Fuse -
A/C relay: TURN 10A - A].
