Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection
Inspection 1.
Remove the
intake air temperature sensor.
2.

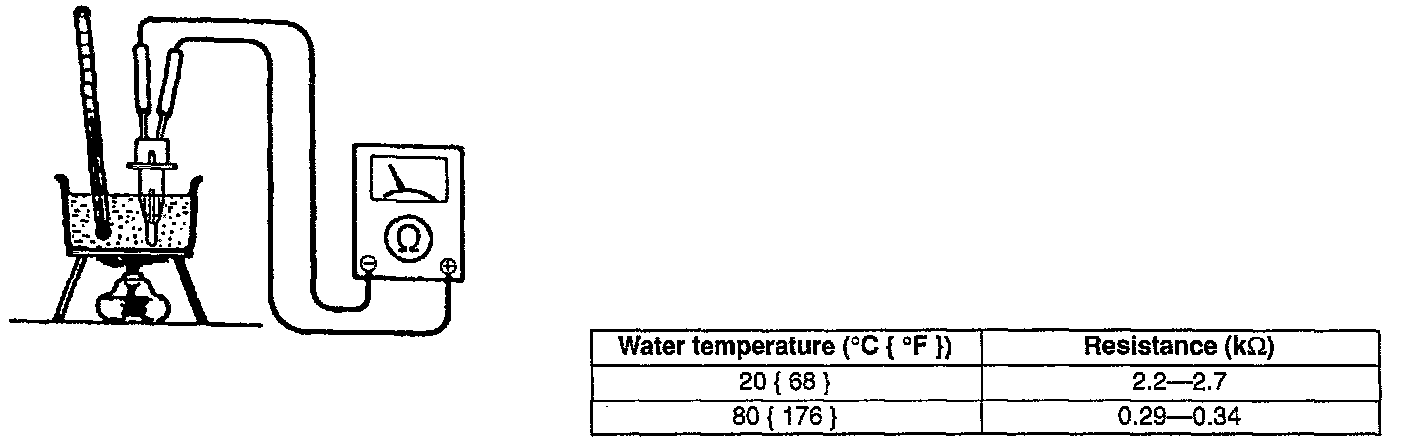

Place the sensor in water with a thermometer, and heat the water gradually.
3.
Measure the resistance of the sensor by using an ohmmeter.
4.
If not as specified, replace the
intake air temperature sensor.
