Crankshaft Position Sensor: Service and Repair




Replacement
1. Remove the undercover.

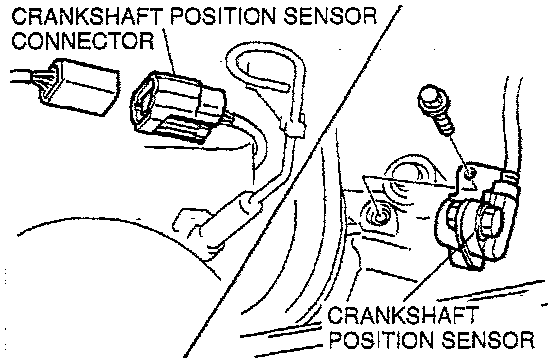

2. Remove the crankshaft position sensor.
3. Install in the reverse order of removal.

Tightening torque:
7.9-10.7 N.m (70-95.4 in-lb)
