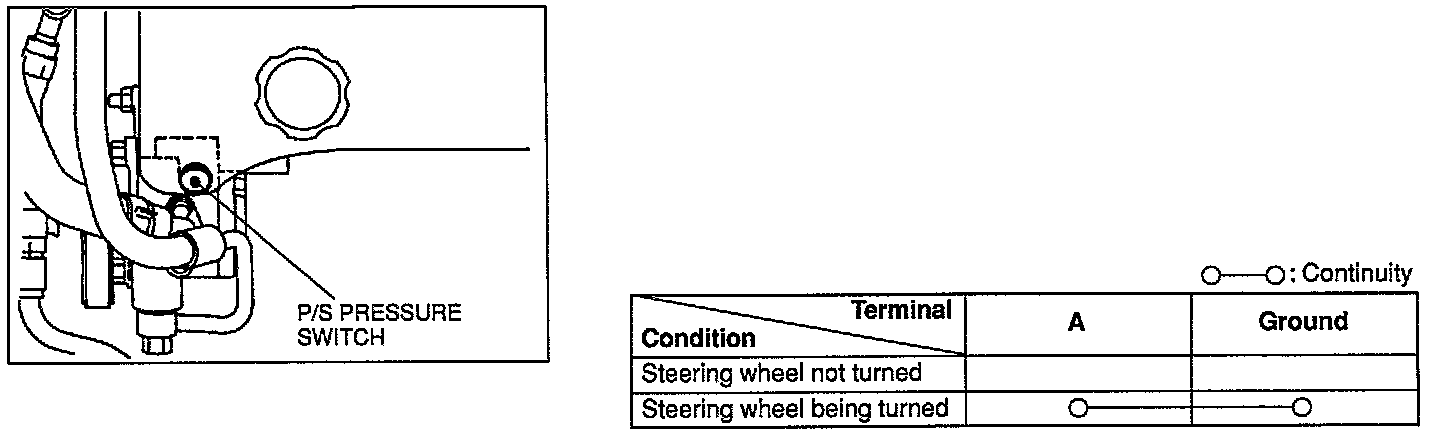

Power Steering Pressure Switch: Testing and Inspection
Inspection 1.
Disconnect the
power steering pressure switch connector.
2.
Start the engine.
3.
Check for the continuity between
power steering pressure switch terminal and a ground by using an ohmmeter.
4.
If not as specified, replace the
power steering pressure switch.
