Fuel Pump Control System
Fuel Pump Control Inspection 1.
Crank the engine and check for the
fuel pump relay operation sound.
2.

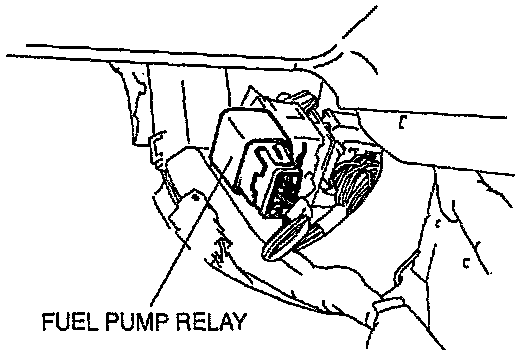

If no operation sound is heard, check the
fuel pump relay.
3.
If the
fuel pump relay is normal, check the following.
^
PCM terminal voltage
Fuel pump control signal
Start signal
^
Main relay operation inspection
^
Wiring harness and connector between main relay and
fuel pump relay.
