Throttle Full Close Switch: Testing and Inspection

Caution:
^ The closed throttle position switch is set at the factory. Do not try to adjust it.
^ Removing the closed throttle position switch can negatively effect the engine.

Inspection

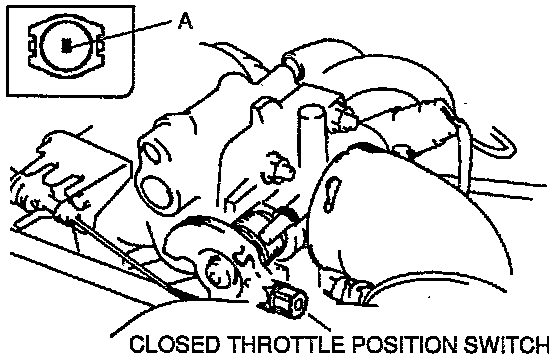

1. Disconnect the closed throttle position switch connector.

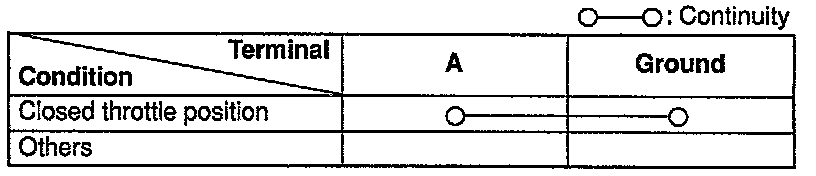

2. Check for continuity between the closed throttle position switch terminal and a ground by using an ohmmeter.

3. If not as specified, replace the throttle body.
