Vehicle Speed Sensor: Service and Repair

Replacement
1. Disconnect the negative battery cable.
2. Remove the battery, air cleaner assembly and battery carrier.
3. Disconnect the vehicle speedometer sensor connector.

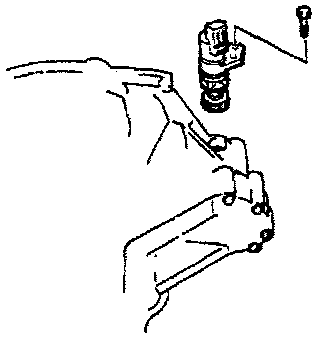

4. Remove the vehicle speedometer sensor.
5. Apply ATF to a new 0-ring and install it on a new vehicle speedometer sensor.
6. Install the vehicle speedometer sensor.

Tightening torque: 7.9-10.7 N-m (70-95 in lb)

7. Connect the vehicle speedometer sensor connector.
8. Install the battery carrier, air cleaner assembly and the battery.
9. Connect the negative battery cable.
