Vehicle Speed Sensor: Testing and Inspection
InspectionInspection of voltage 1.

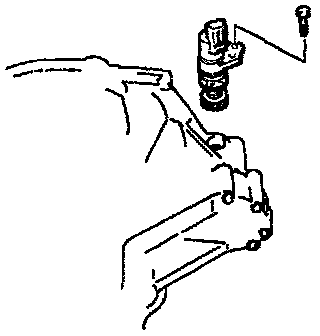

Remove the
vehicle speedometer sensor.
2.

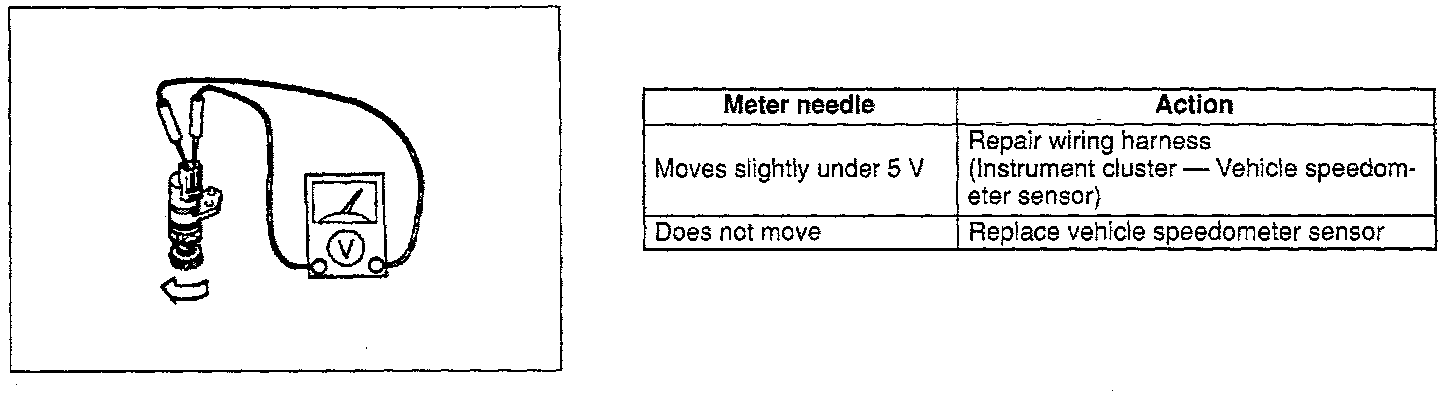

Measure voltage between the terminals of the
vehicle speedometer sensor while rotating the driven gear.
3.
Install the
vehicle speedometer sensor.
