Camshaft, Engine

TIGHTENING SEQUENCE/SPECIFICATIONS

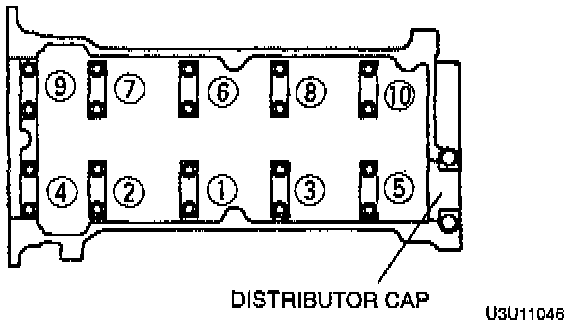

- Tighten the camshaft cap bolts in five or six steps in the order shown to achieve a final torque of 11.3-14.2 Nm (100-125 in. lbs.).

- Pulley lock bolt to 50-60 Nm (37-44 ft. lbs.).
