Front
1.
Remove righthand mud guard, then disconnect washer motor connector.
2.
Apply B+ voltage to terminal B and ground to terminal A,
Fig. 59, and ensure washer motor operates.

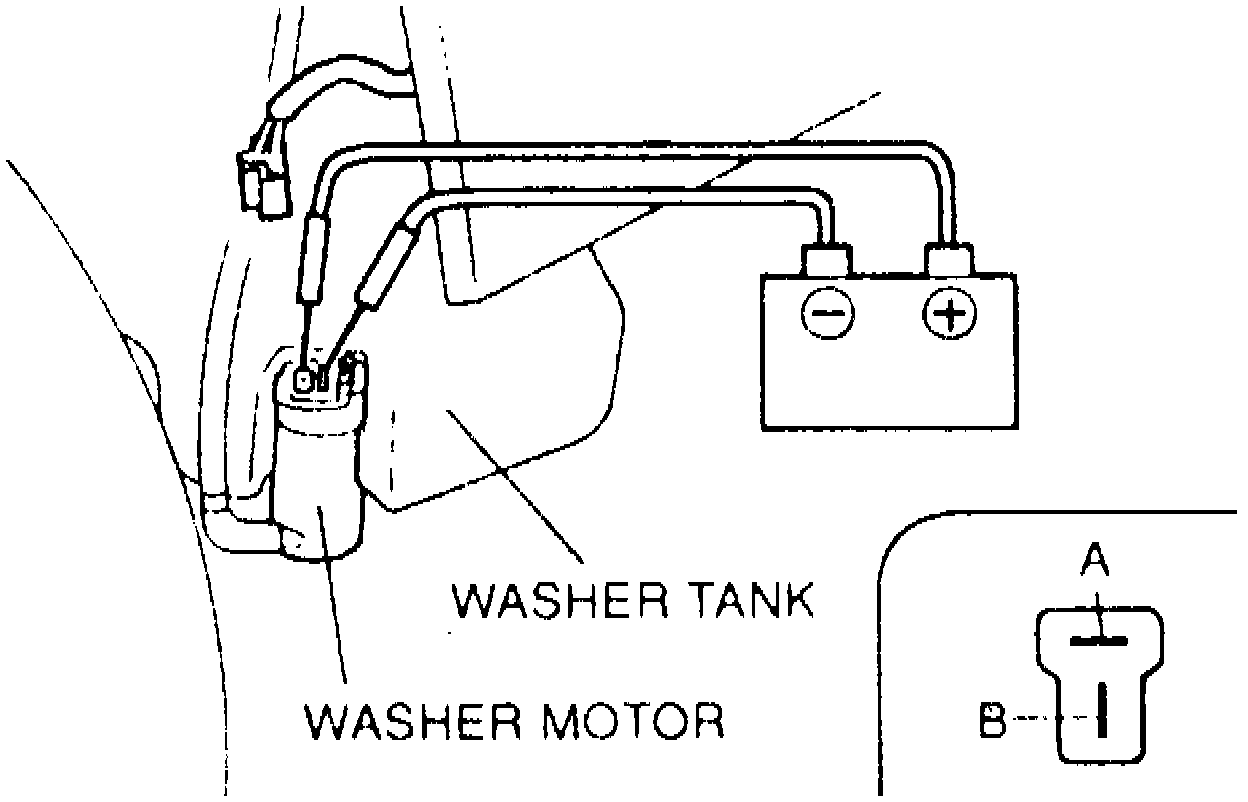

Fig. 59 Washer Motor Inspection & Terminal Identification:
3.
Replace washer motor if it does not operate as specified.
