Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection
Inspection 1.
Disconnect the
mass air flow sensor connector.
2.

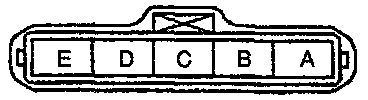

Measure the resistance between terminals C and D by using an ohmmeter.
Specification: 2.21-2.69 k Ohms [20 °C {68 °F}] 3.
If not as specified, replace the
mass air flow sensor.
