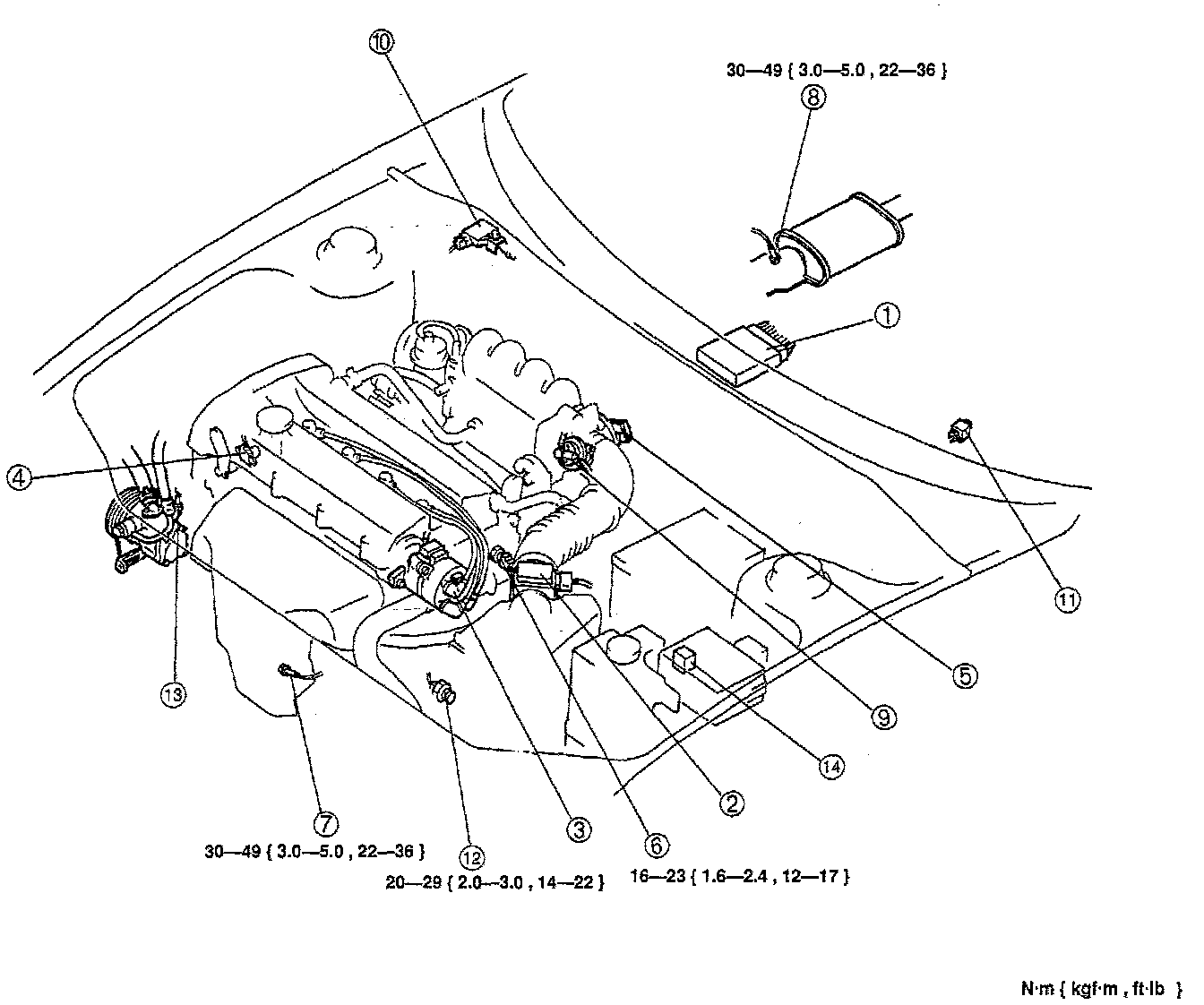

Computers and Control Systems: Locations
1.
Powertrain control module (PCM)
2.
Mass air flow sensor
3.
Camshaft position sensor
4.
Crankshaft position sensor
5.
Throttle position sensor
6.
Engine coolant temperature sensor
7.
Heated oxygen sensor (Front)
8.
Heated oxygen sensor (Rear)
9.
EGR valve position sensor
10.
EGR boost sensor
11.
Clutch switch
12.
Neutral switch
13.
Power steering pressure switch
14.
Main relay
