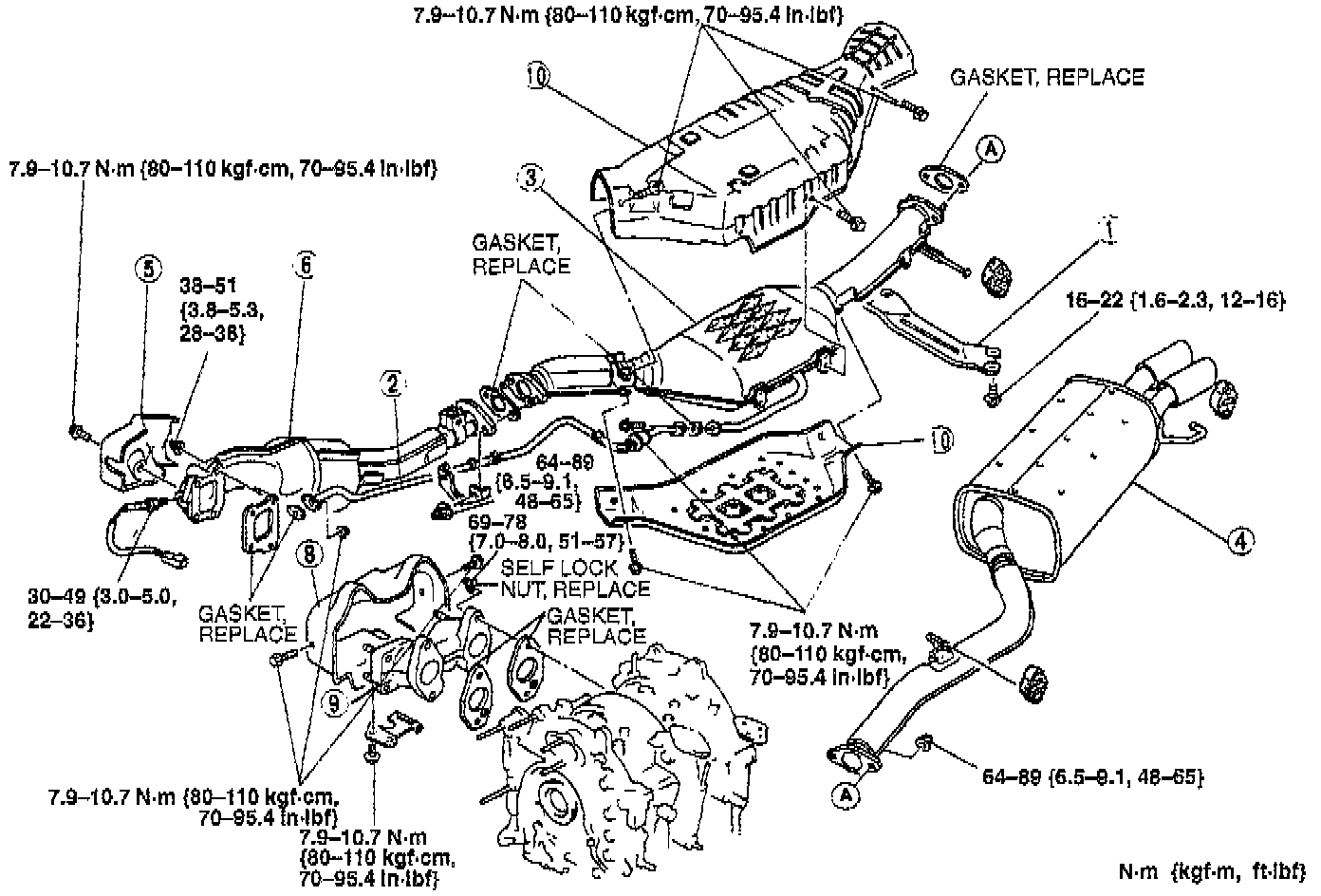

Exhaust System

1. Bracket
2. Split air pipe
3. Three-way catalytic converter
4. Main silencer
5. Insulator
6. Warm-up three-way catalytic converter
7. Turbocharger
8. Insulator
9. Exhaust manifold
10. Insulator
