Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

Removal/Installation
1. Remove the extension manifold.

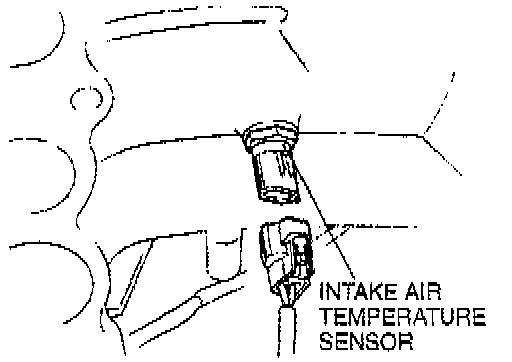

2. Remove the intake air temperature sensor from extension manifold.
3. Install the intake air temperature sensor.

Tightening torque: 7.9-11.7 N m (70-104 in.lb.)

Inspection

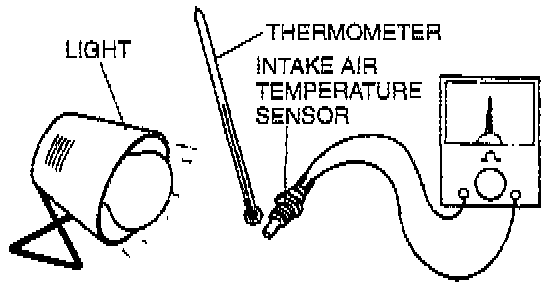

1. Remove the intake air temperature sensor and heat the sensor as shown in the figure.

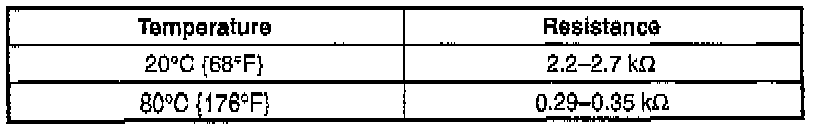

2. Measure the resistance of the sensor with an ohmmeter.
3. Replace the sensor if necessary.
