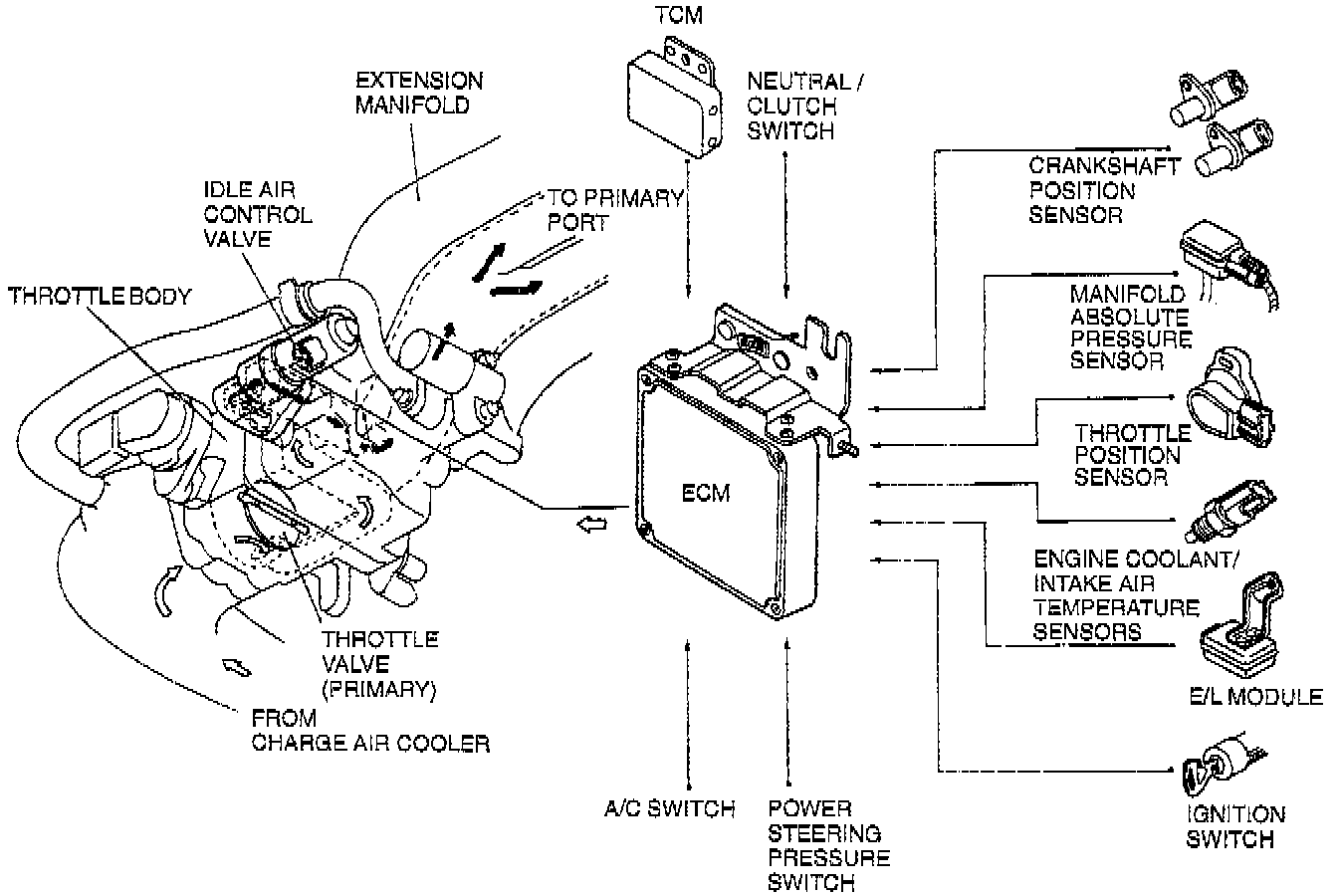

Idle Speed Control System
DESCRIPTION Idle-speed control system controls the bypass air amount that passes through the throttle valve. The idle-speed control system performs closed loop control so that engine idles smoothly and at the target speed. The system also performs the function of the anti-afterburns valve
(AAV), thereby eliminating the AAV and simplifying deceleration control system.
