Mileage Calibration Switch: Testing and Inspection
Inspection 1.

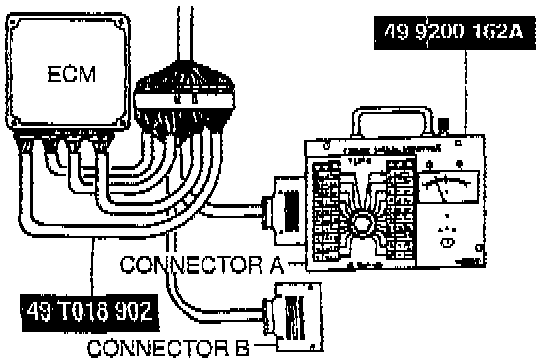

Connect the
SST (Special Service Tool) (Engine Signal Monitor) to the ECM (Engine Control Module).
2.
Turn the
ignition switch to ON.
3.

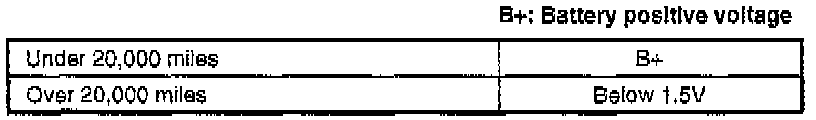

Measure the voltage at ECM terminal 1 N within the first two seconds after the
ignition switch is turned to ON.
4.
If not as specified, inspect the
vehicle speedometer sensor.
