Deceleration Valve: Testing and Inspection
Inspection 1.
Remove the
[1][2]air bypass valve.
2.

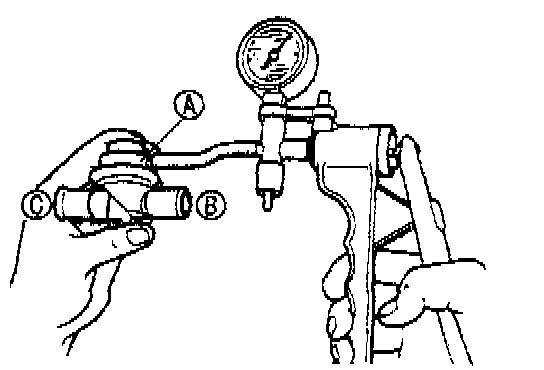

Connect a
vacuum pump to the
[1][2]air bypass valve port A.
3.

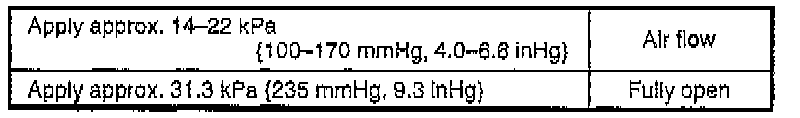

Check the operation of the
[1][2]air bypass valve.
4.
If not as specified, replace
[1][2]air bypass valve.
