Air Injection Pump Relay: Testing and Inspection

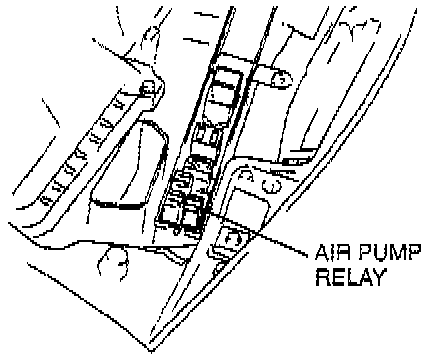

Inspection (On-vehicle) Check that a "clicking" sound is heard at the Air pump relay when turning the ignition switch ON and OFF.
Inspection 1.
Disconnect the air pump relay.
2.

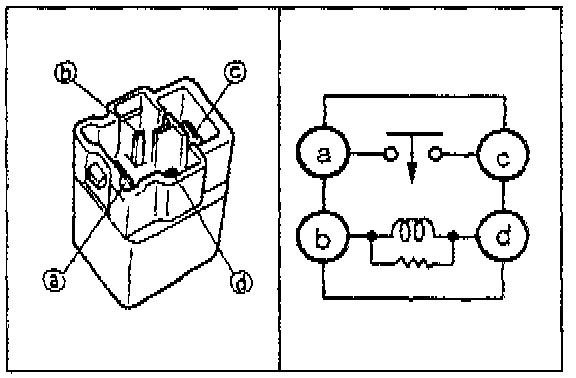

Apply Battery positive voltage and ground to terminals B and D of the
relay.
3.
Check continuity of the
relay.
