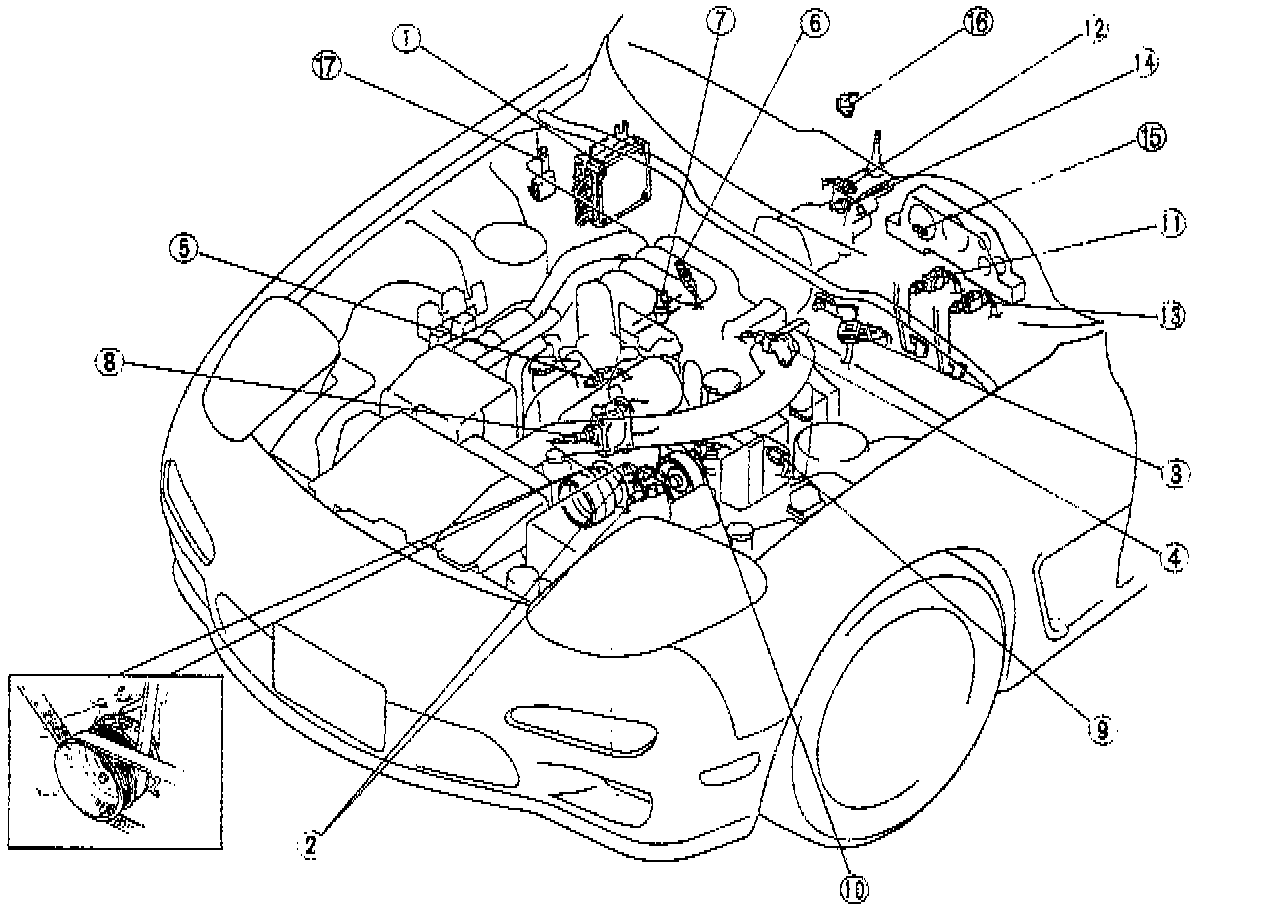

Control System (Input Devices)
1. Engine control module (ECM)
2. Crankshaft position sensor
3. Manifold absolute pressure sensor
4. Throttle position sensor
5. Engine coolant temperature sensor
6. Intake air temperature sensor
7. Fuel thermosensor
8. Oxygen sensor
9. Knock sensor
10. Power steering pressure switch
11. Stoplight switch
12. Neutral switch (MT)
13. Clutch switch (MT)
14. 1-2 switch (MT)
15. Mileage switch
16. Heat hazard sensor
17. Electrical load (E/L) module
