Input/Turbine Speed Sensor




Replacement
1. Remove the transmission assembly.

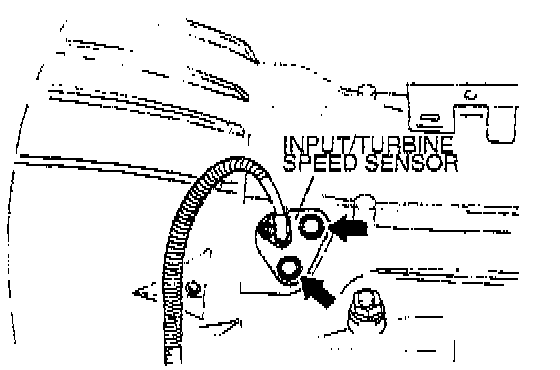

2. Remove the input/turbine speed sensor from the transmission case.
3. Apply ATF to a new 0-ring and install it on the new input/turbine speed sensor.
4. Install the new gasket and new input/turbine speed sensor.
5. Install new bolts and tighten.

Tightening torque: 5.0-6.8 N m (44-6O in.lb.)

6. Install the transmission assembly.
