Input/Turbine Speed Sensor
Inspection 1.
Disconnect the negative battery cable.
2.
Disconnect the input/turbine speed sensor connector.
3.

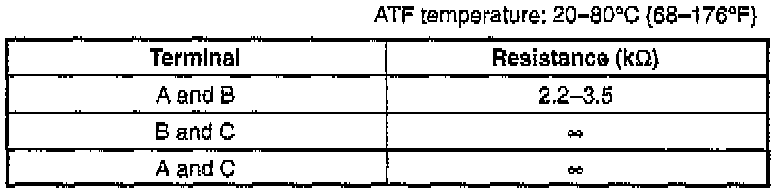

Measure the resistance between the terminal of the input/turbine speed sensor.
4.
If not correct replace the input/turbine speed sensor.
5.
Connect the input/turbine speed sensor connector.
6
Connect the negative battery cable.
