Fuel Filter: Service and Repair
FUEL FILTER REPLACEMENTHigh Pressure Side
The fuel filter must be replaced at the intervals outlined in the maintenance schedule.
1. Disconnect the fuel hoses from the fuel filter.
2. Remove the fuel filter and bracket.
3. Install in the reverse order of removal.
4. Verify that the fuel hoses are pushed fully onto the fuel filter nozzles.

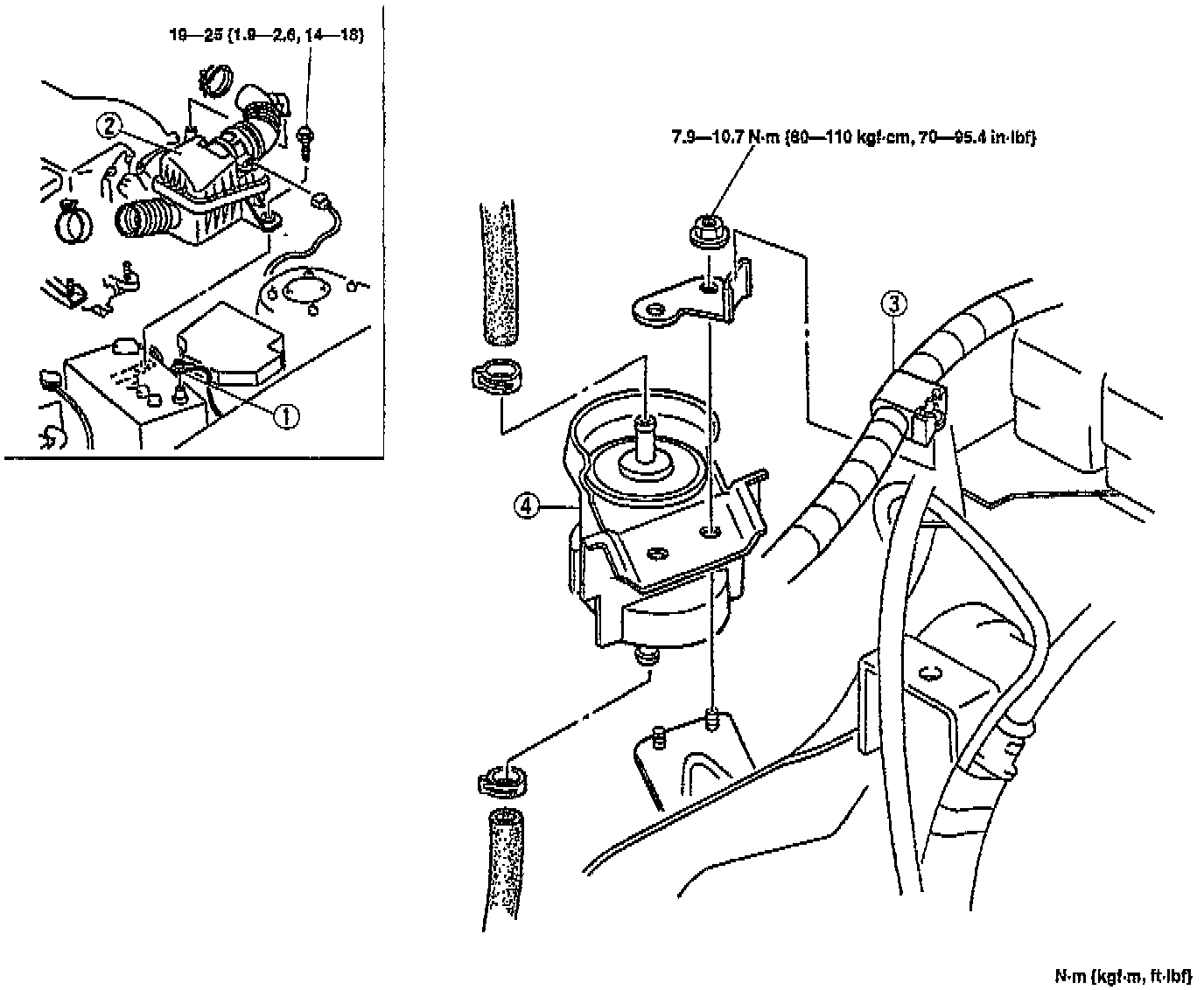

1. Negative battery cable
2. Air cleaner
3. Harness
4. Fuel filter (High pressure side)

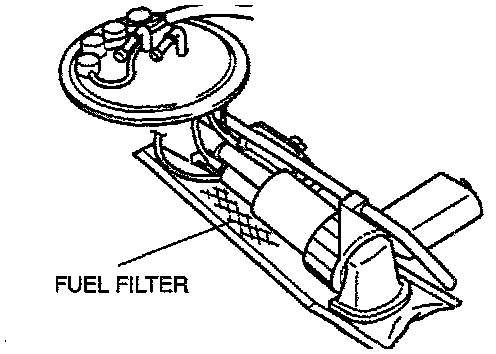

Fuel Tank Unit:
Low Pressure Side (In-Tank Filter)
