Component Diagnosis & Testing

Refer to Fig. 54 through 58. for component diagnosis and testing.

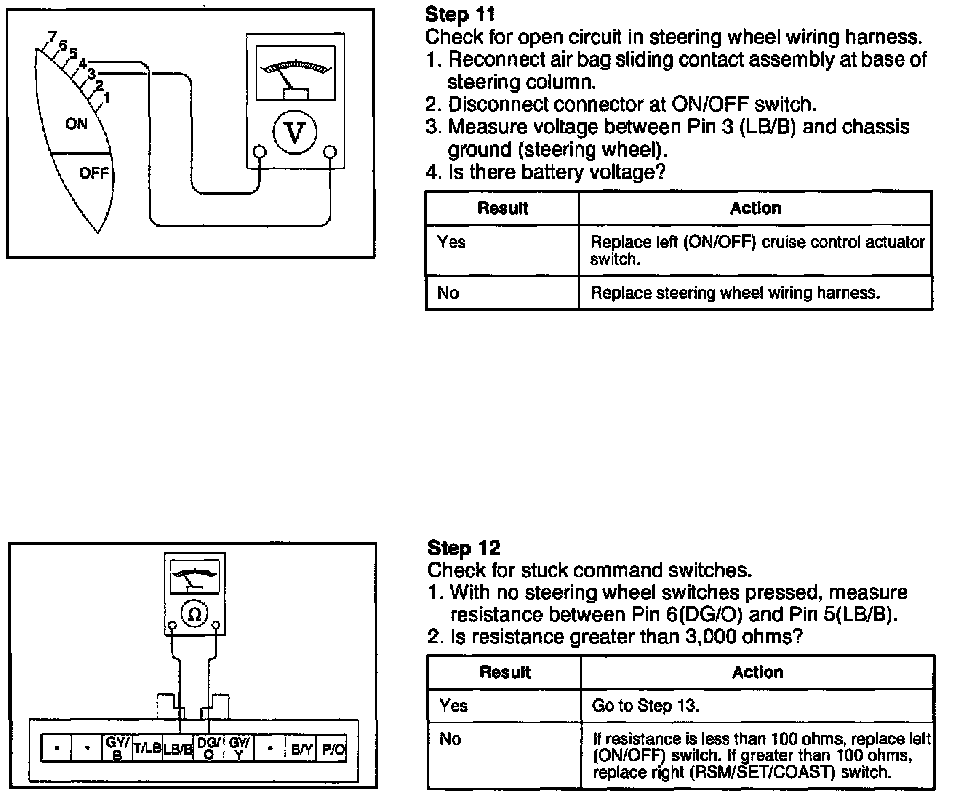

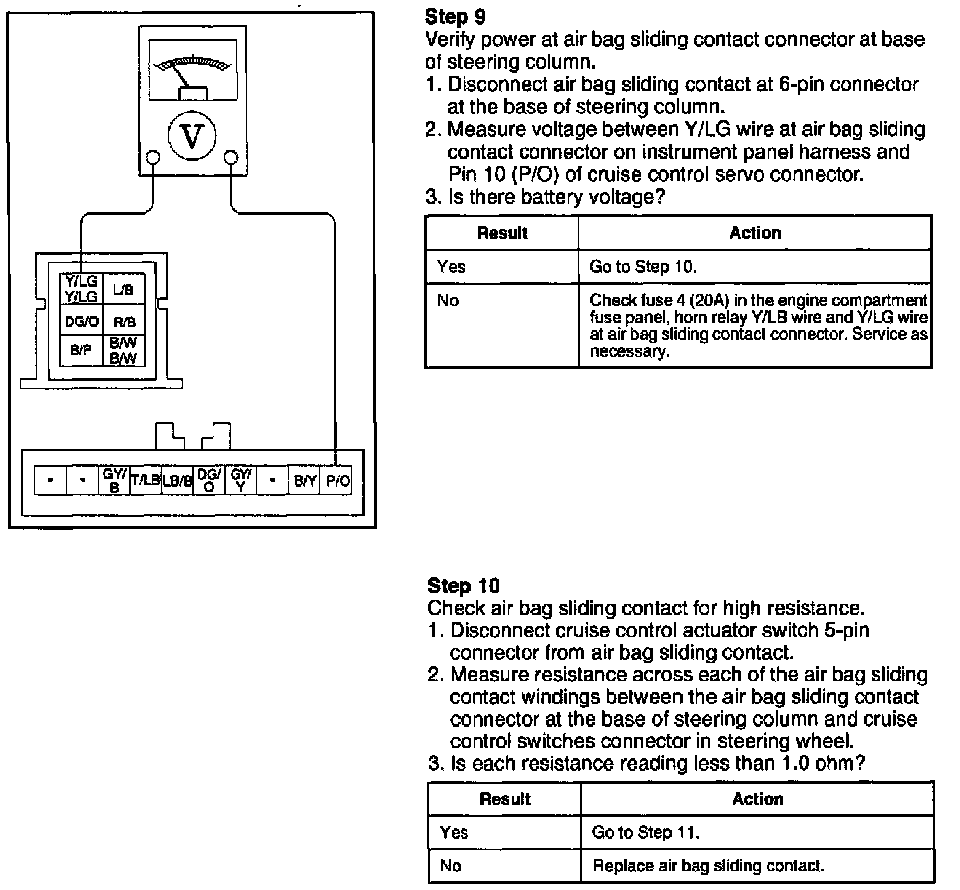

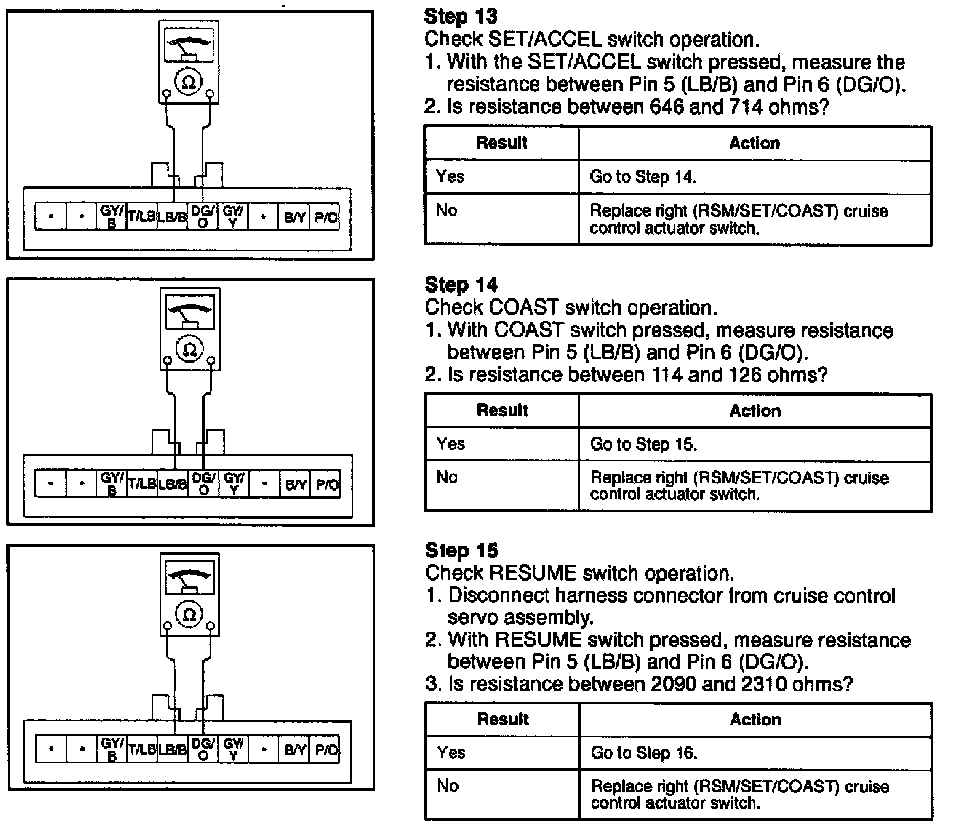

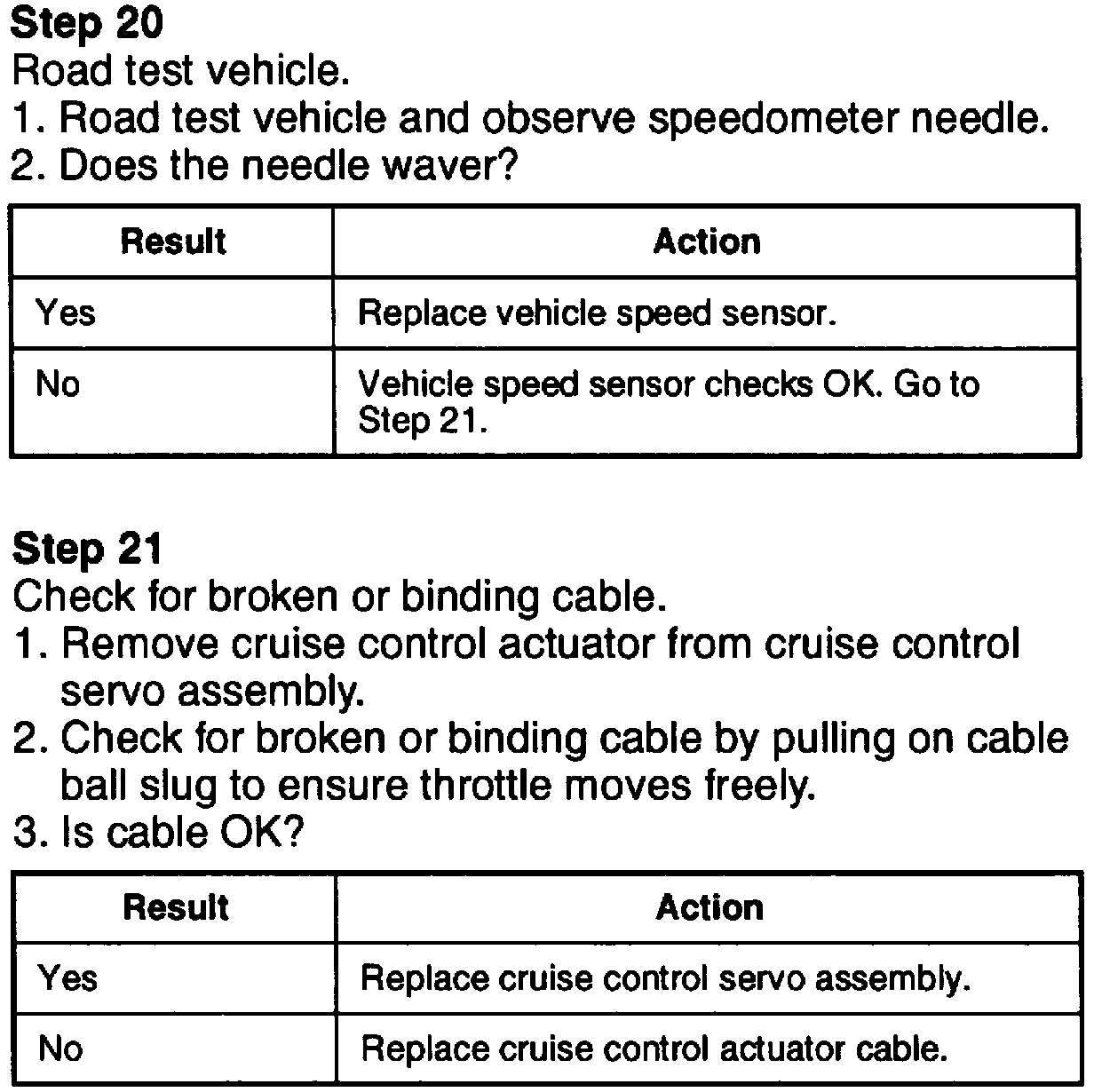

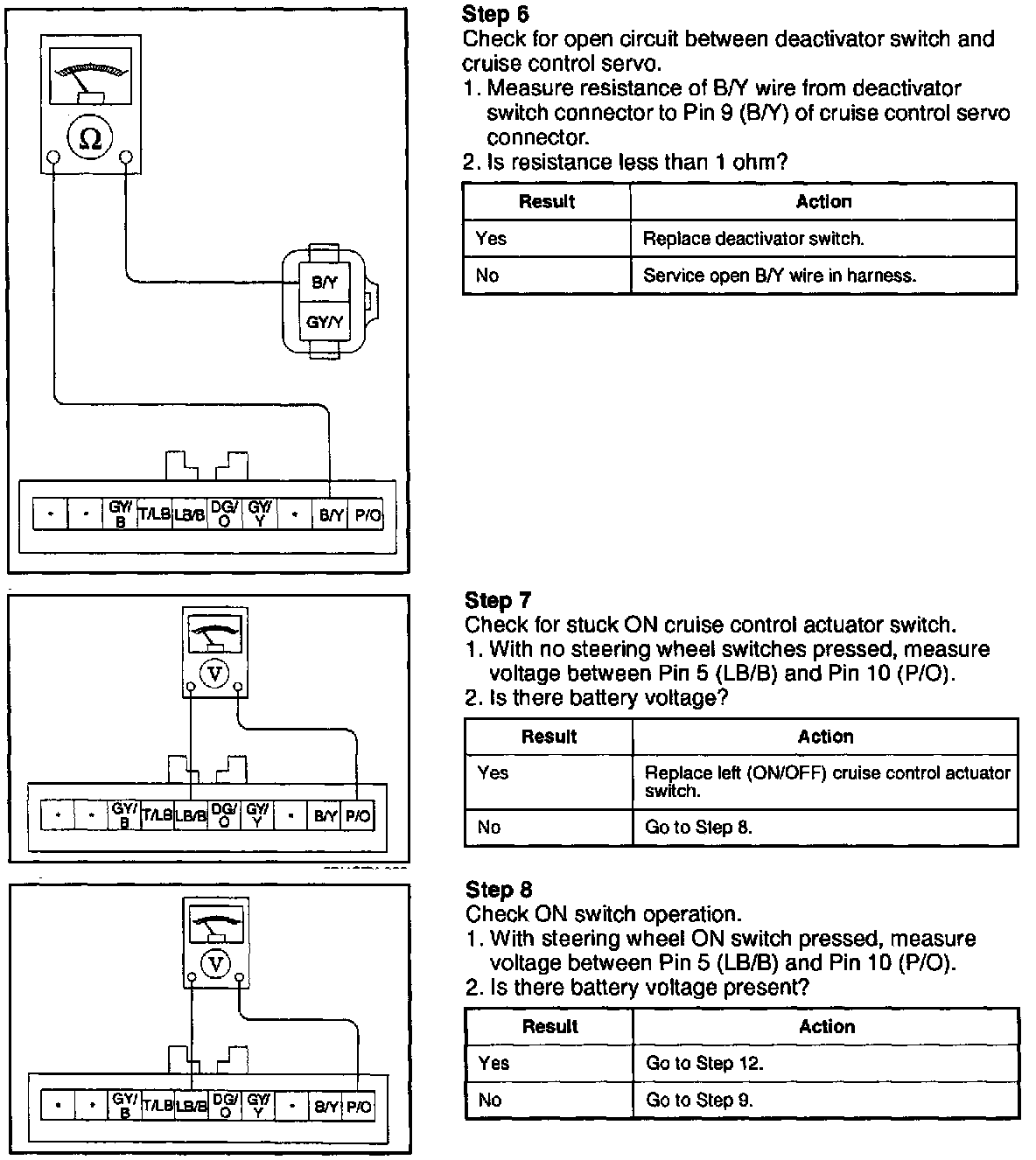

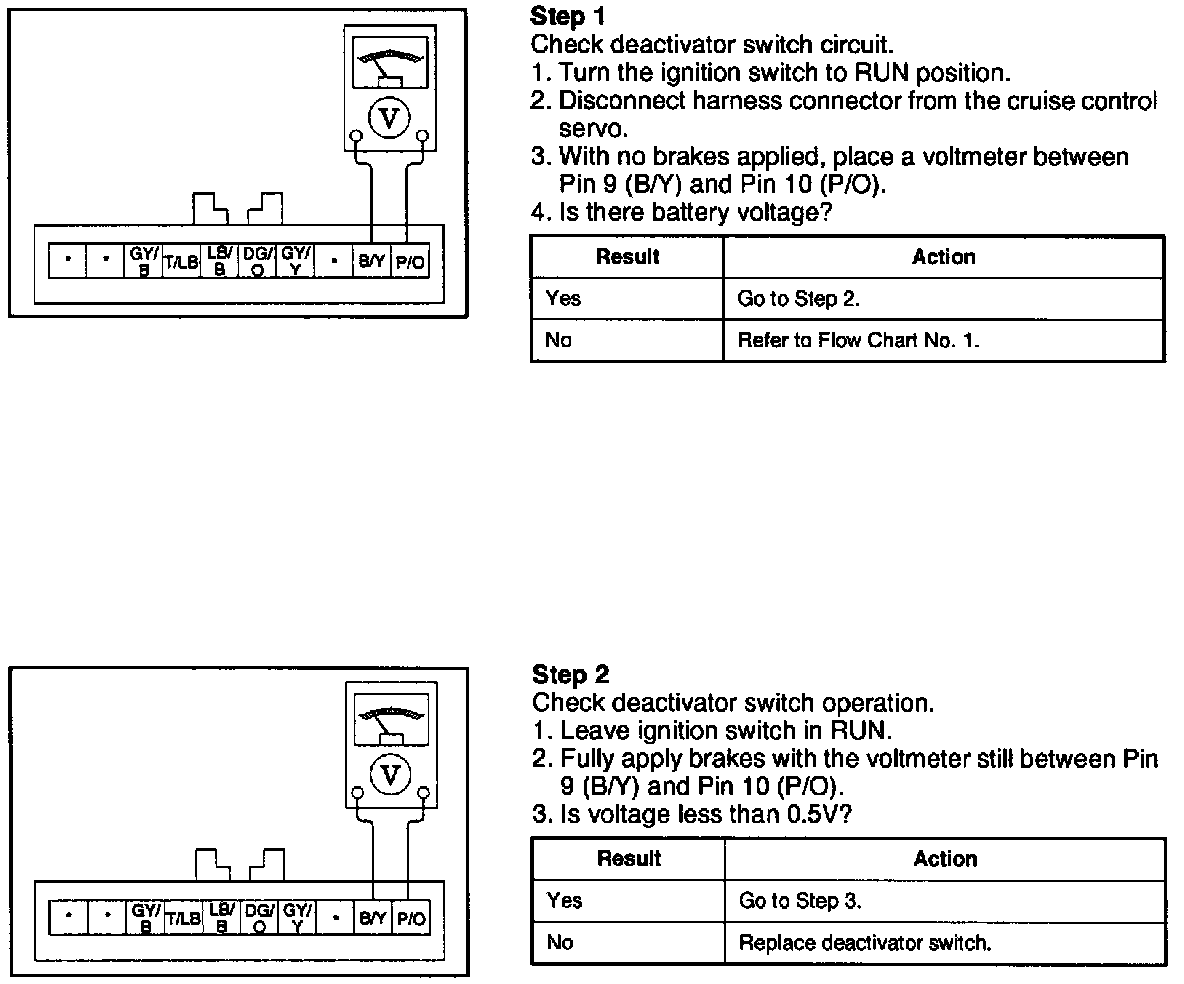

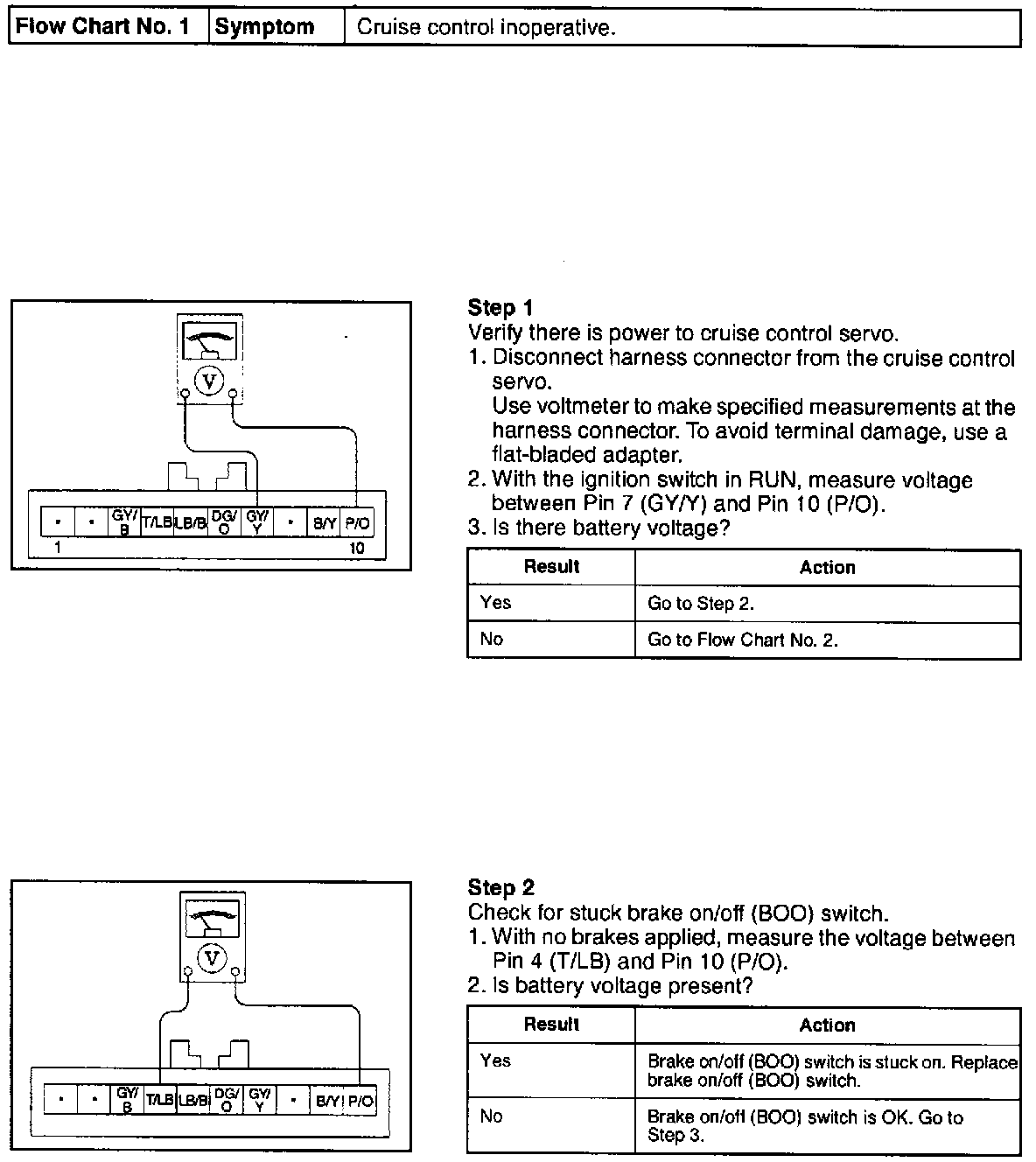

Fig. 54 Cruise Control Inoperative (Part 1 Of 8):

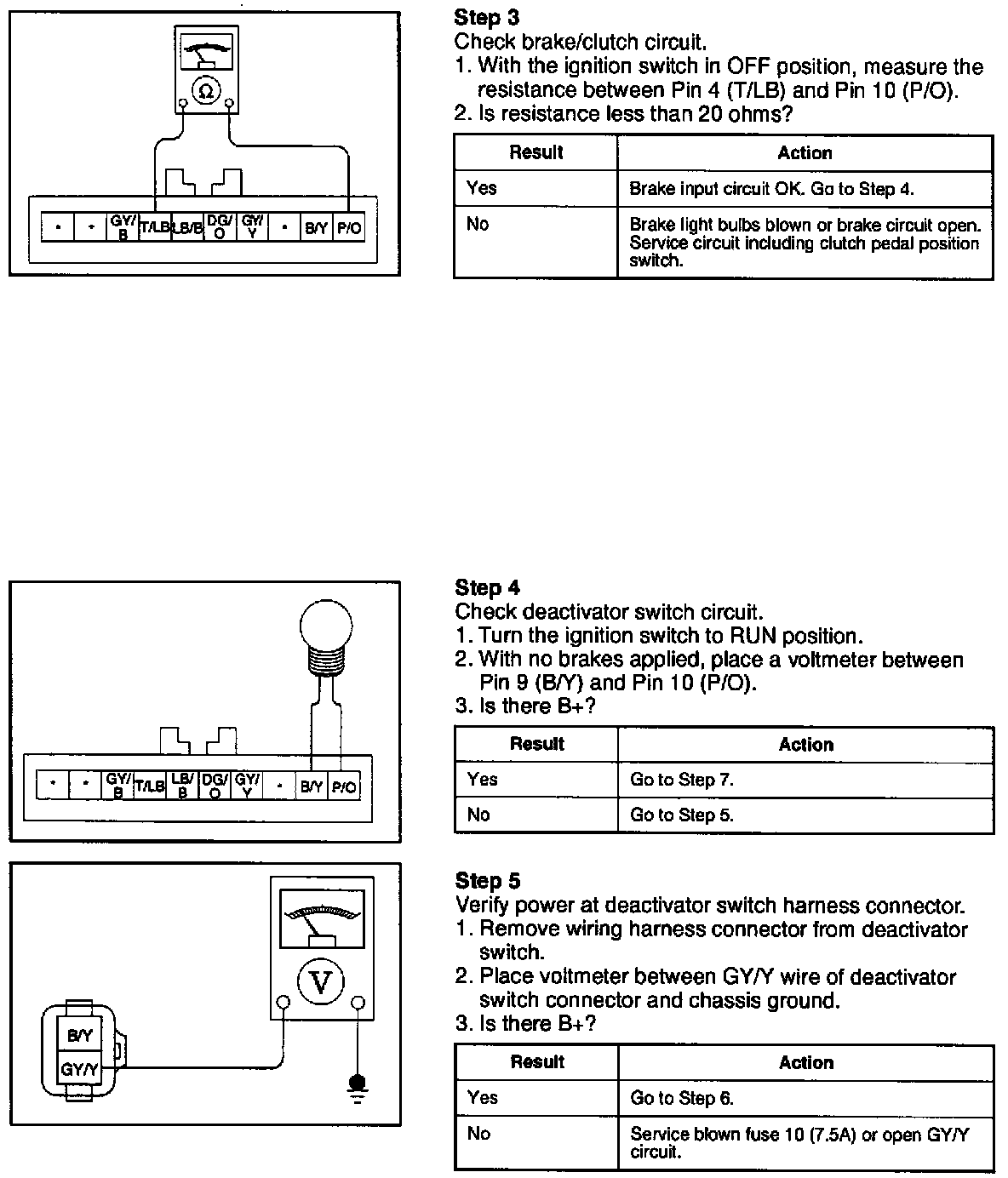

Fig. 54 Cruise Control Inoperative (Part 2 Of 8):

Fig. 54 Cruise Control Inoperative (Part 3 Of 8):

Fig. 54 Cruise Control Inoperative (Part 4 Of 8):

Fig. 54 Cruise Control Inoperative (Part 5 Of 8):

Fig. 54 Cruise Control Inoperative (Part 6 Of 8):

Fig. 54 Cruise Control Inoperative (Part 7 Of 8):

Fig. 54 Cruise Control Inoperative (Part 8 Of 8):

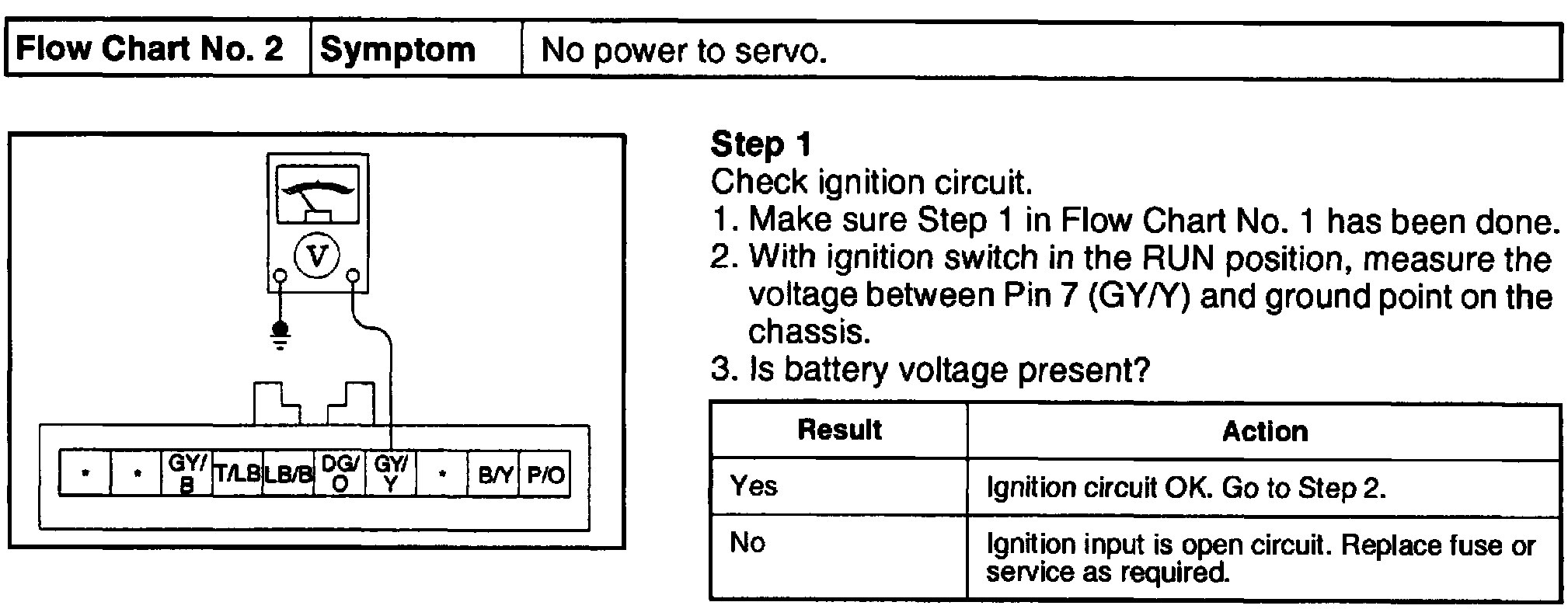

Fig. 55 No Power To Cruise Control Servo (Part 1 Of 2):

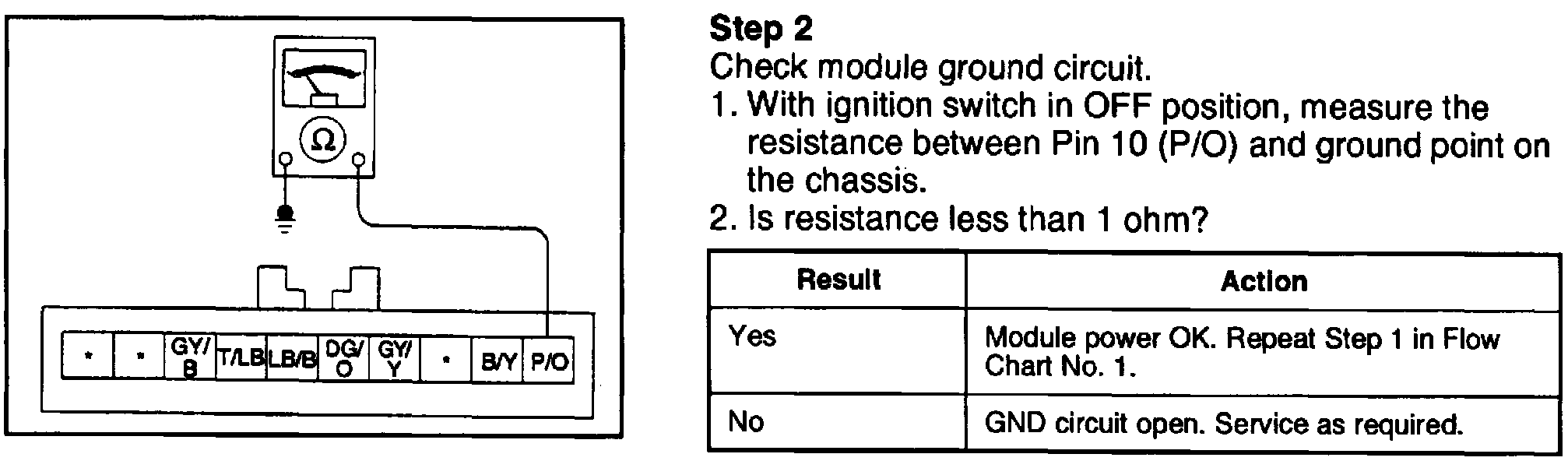

Fig. 55 No Power To Cruise Control Servo (Part 2 Of 2):

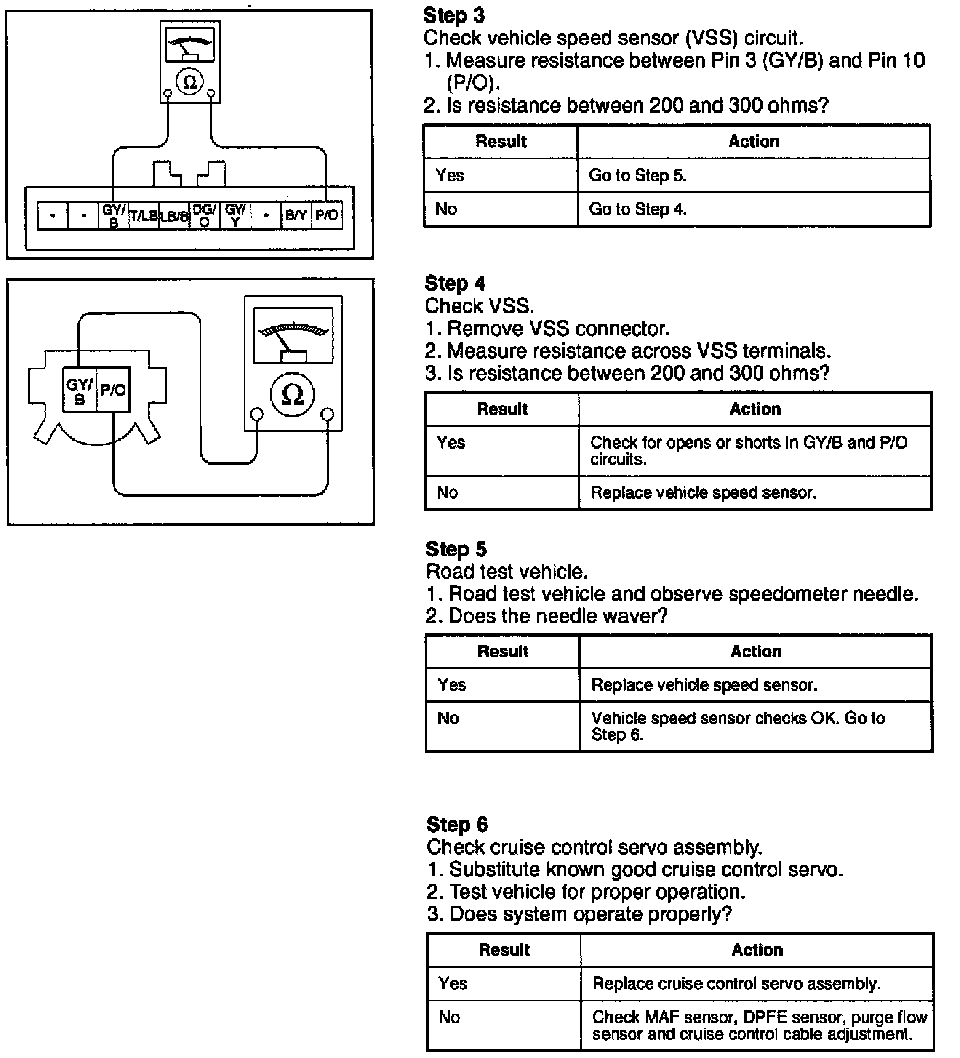

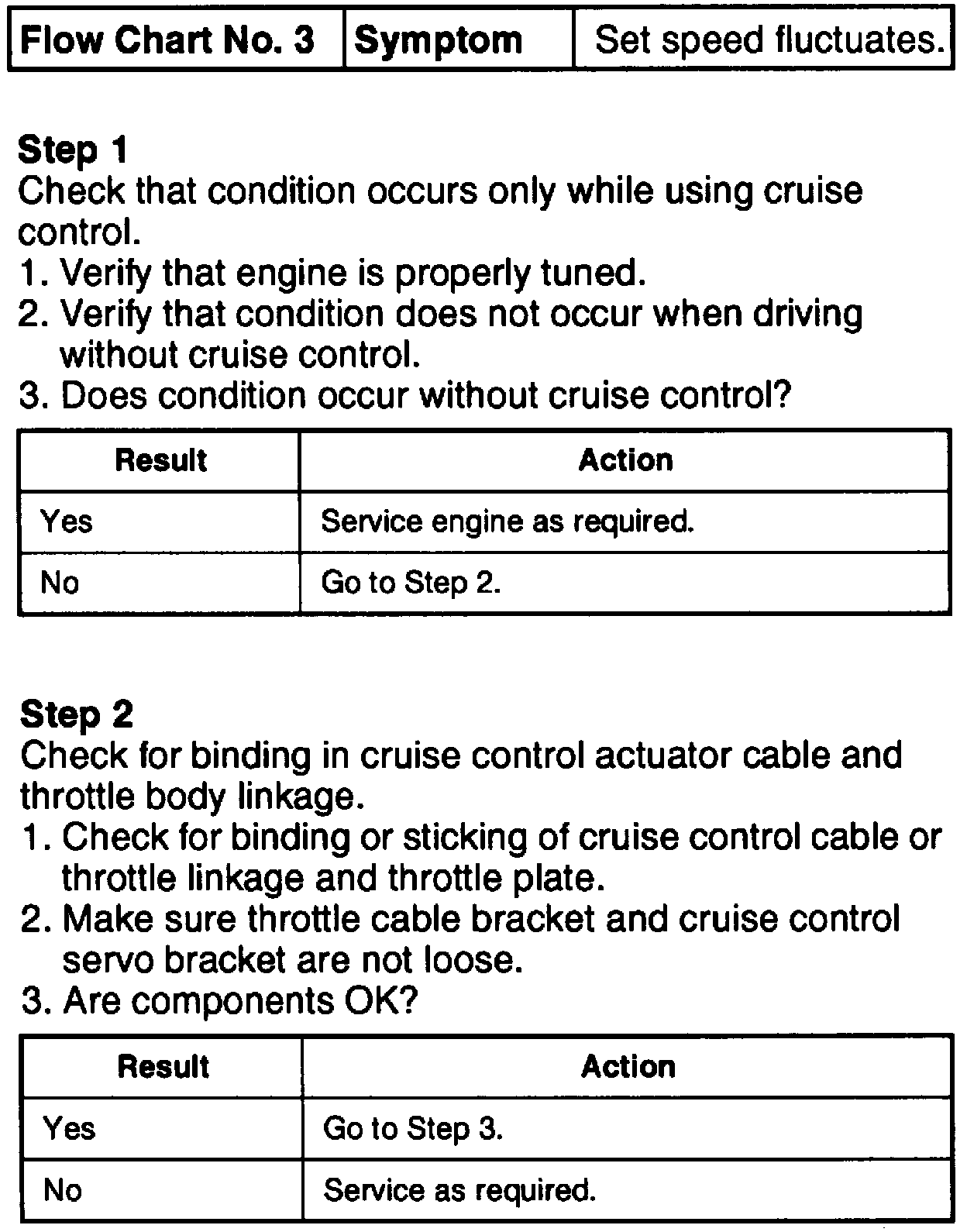

Fig. 56 Cruise Control Set Speed Fluctuates (Part 1 Of 2):

Fig. 56 Cruise Control Set Speed Fluctuates (Part 2 Of 2):

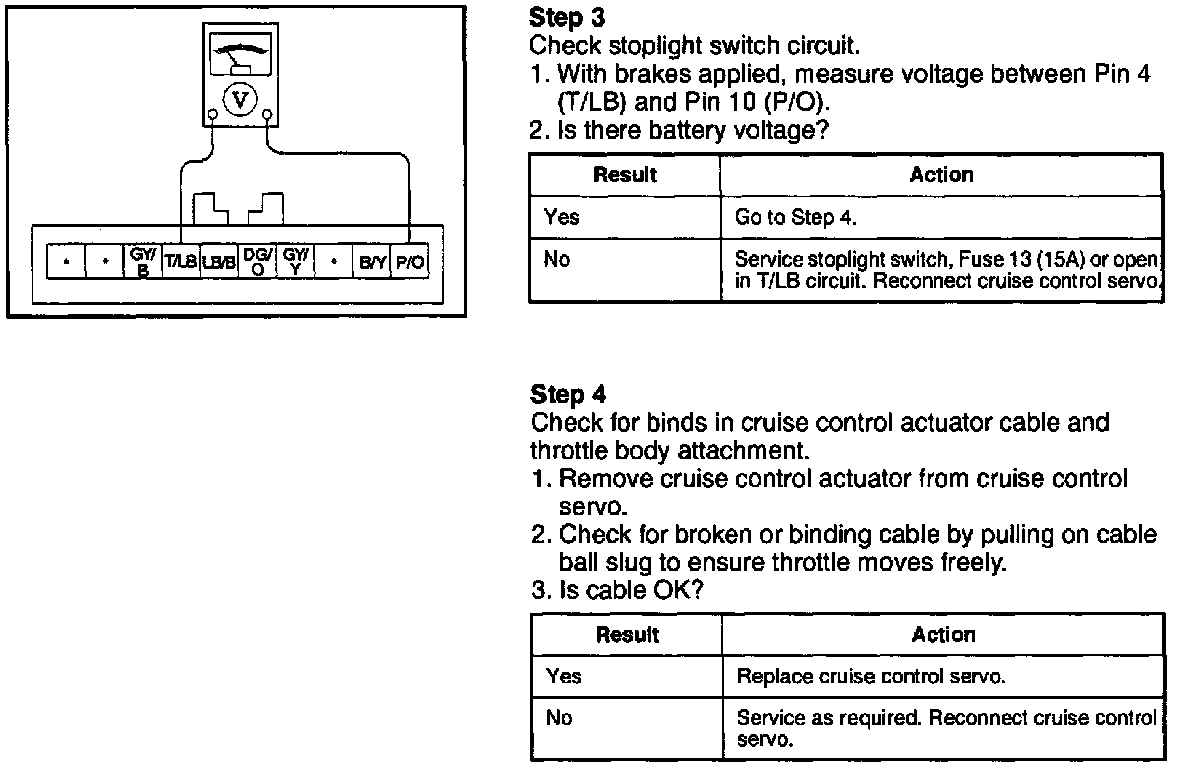

Fig. 57 Cruise Control Does Not Disengage When Brakes Are Applied (Part 1 Of 2):

Fig. 57 Cruise Control Does Not Disengage When Brakes Are Applied (Part 2 Of 2):

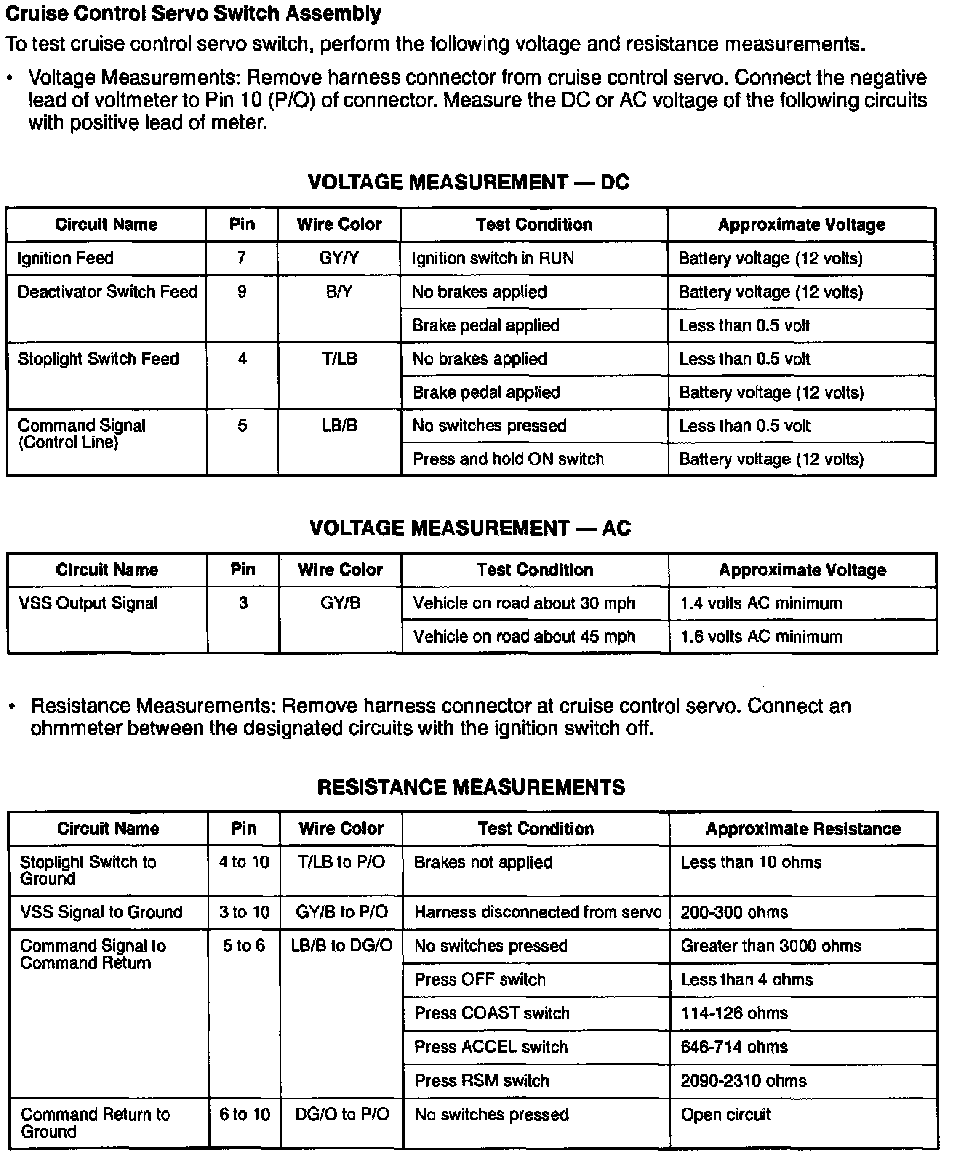

Fig. 58 Cruise Control Servo Switch Test:
