Heater Core: Service and Repair
1.
Remove the instrument panel.
2.
Remove the evaporator core housing.
3.
Drain the radiator.
4.
Disconnect the
heater hoses from the
heater core.
5.

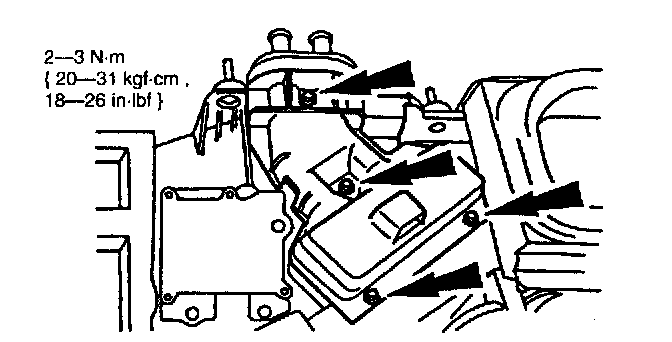

Remove the plenum chamber.
6.

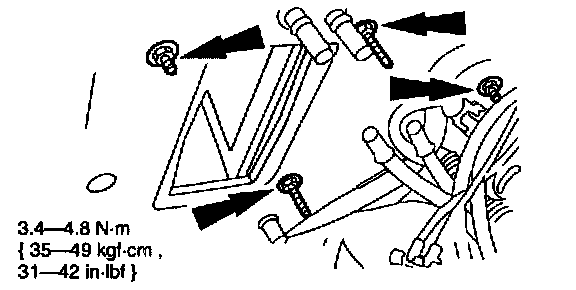

Remove the screws and remove the heater core cover.
7.

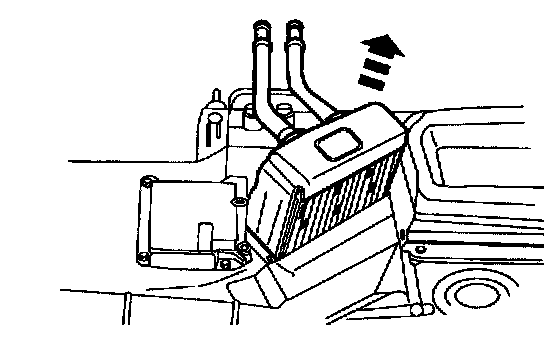

Remove the
heater core.
8.
Install in reverse order of removal.
