Vehicle Speed Sensor: Service and Repair

REPLACEMENT
1. Raise the vehicle on a hoist.

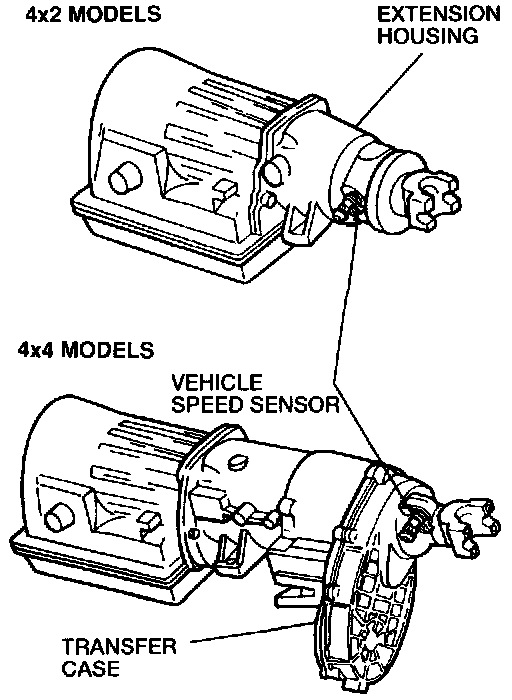

2. Disconnect the electrical connector from the vehicle speed sensor on the transmission (4x2 models) or transfer case (4x4 models).
3. Remove the retaining bolt.
4. Remove the vehicle speed sensor.

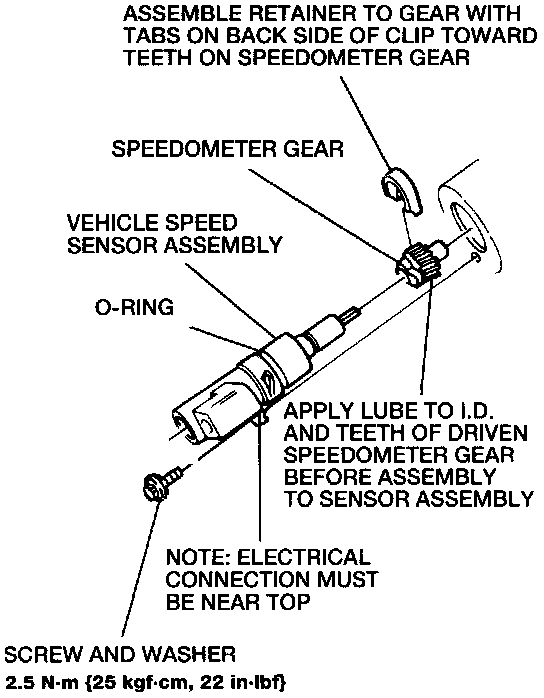

5. Remove the speedometer gear retainer.
6. Remove the driven gear.




7. Install a new driven gear on a new vehicle speed sensor.
8. Secure the speedometer driven gear with the retainer.
9. Install the new vehicle speed sensor in the transmission (4x2 models) or transfer case (4x4 models).
10. Tighten the retaining bolt.

Tightening torque: 2.5 Nm (22 in. lbs.)

11. Connect the vehicle speed sensor electrical connector.
12. Lower the vehicle.
